Caliber L4-2.0L (2008)

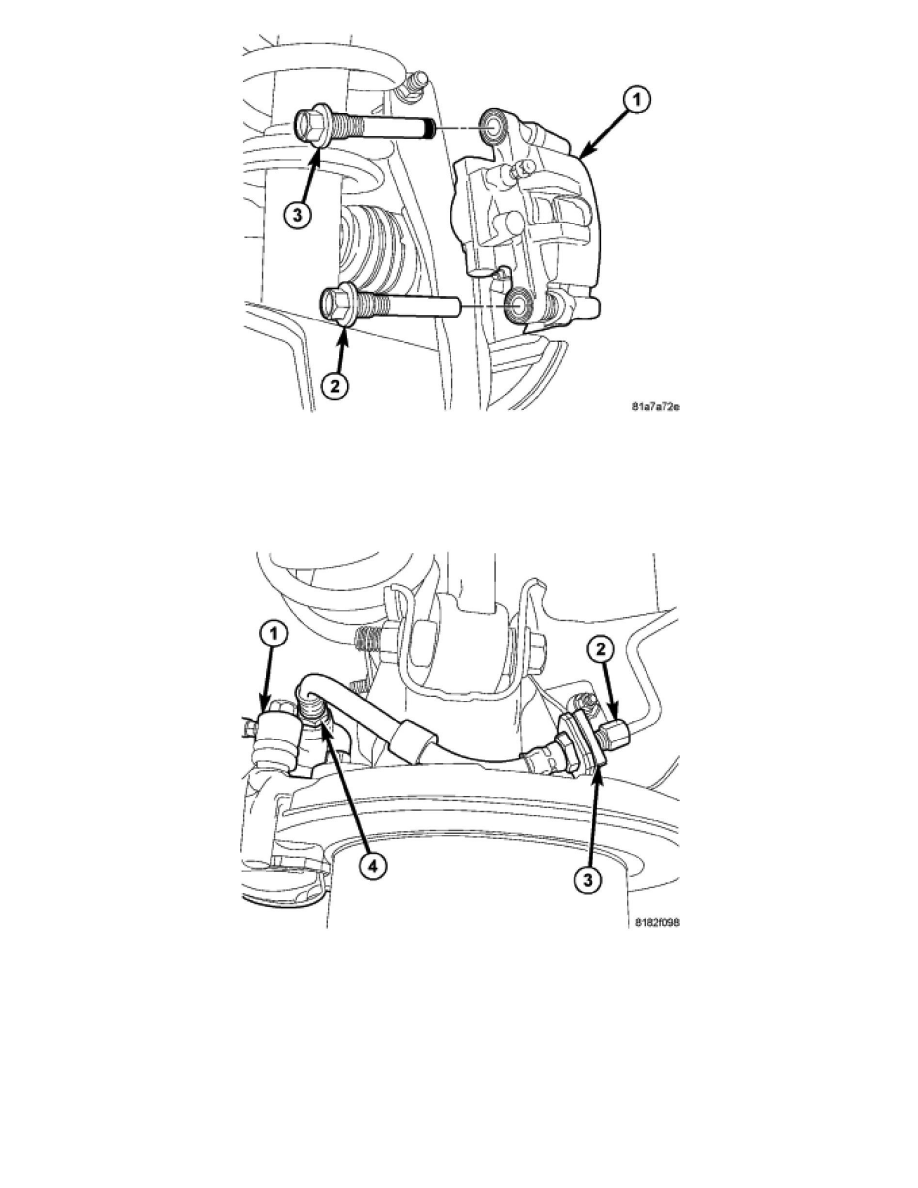

NOTE: When installing the caliper guide pin bolts (2, 3), make sure the bolts are put back in the same locations as when removed to avoid NVH
issues. Depending on the build date (vehicles built before or after 7/27/06) and services performed, the location of the bolt with the special sleeve
on the tip (3) can vary.
4. Align the caliper guide pin bolt holes with the adapter bracket. Install the lower (2) and upper (with special sleeve) (3) caliper guide pin bolts.
Tighten the guide pin bolts to 43 Nm (32 ft. lbs.).
5. Thread the rear brake flex hose (4) into the brake caliper (1). Tighten the flex hose fitting at the caliper to 15 Nm (133 in. lbs.).
6. Route and install the brake flex hose into the trailing link mounted bracket. Install the clip (3) securing the flex hose to the bracket.
7. Thread the brake tube nut (2) into brake flex hose. Tighten the brake tube nut to 17 Nm (150 in. lbs.).
