Caliber L4-2.0L VIN B (2007)
Cabin Ventilation Grille: Service and Repair
Removal
SCREEN-AIR INLET

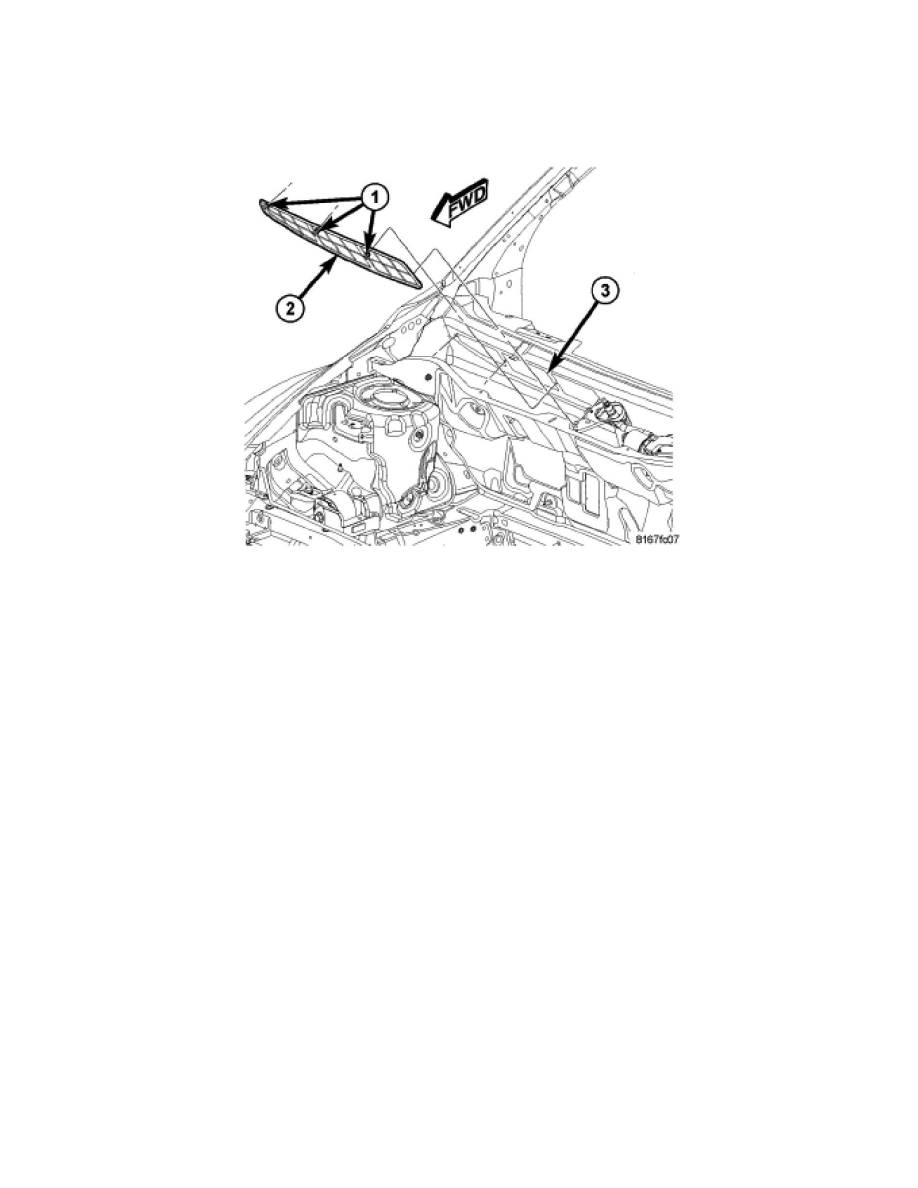

NOTE: LHD model shown. RHD model similar.
1. Remove the cowl grille screen.
2. Disengage the three push-in retainers (1) that secure the HVAC housing air inlet screen (2) to the cowl panel (3) and remove the screen.
