Caliber L4-2.0L VIN B (2007)
Trim Panel: Service and Repair
Cowl Trim
Removal
REMOVAL

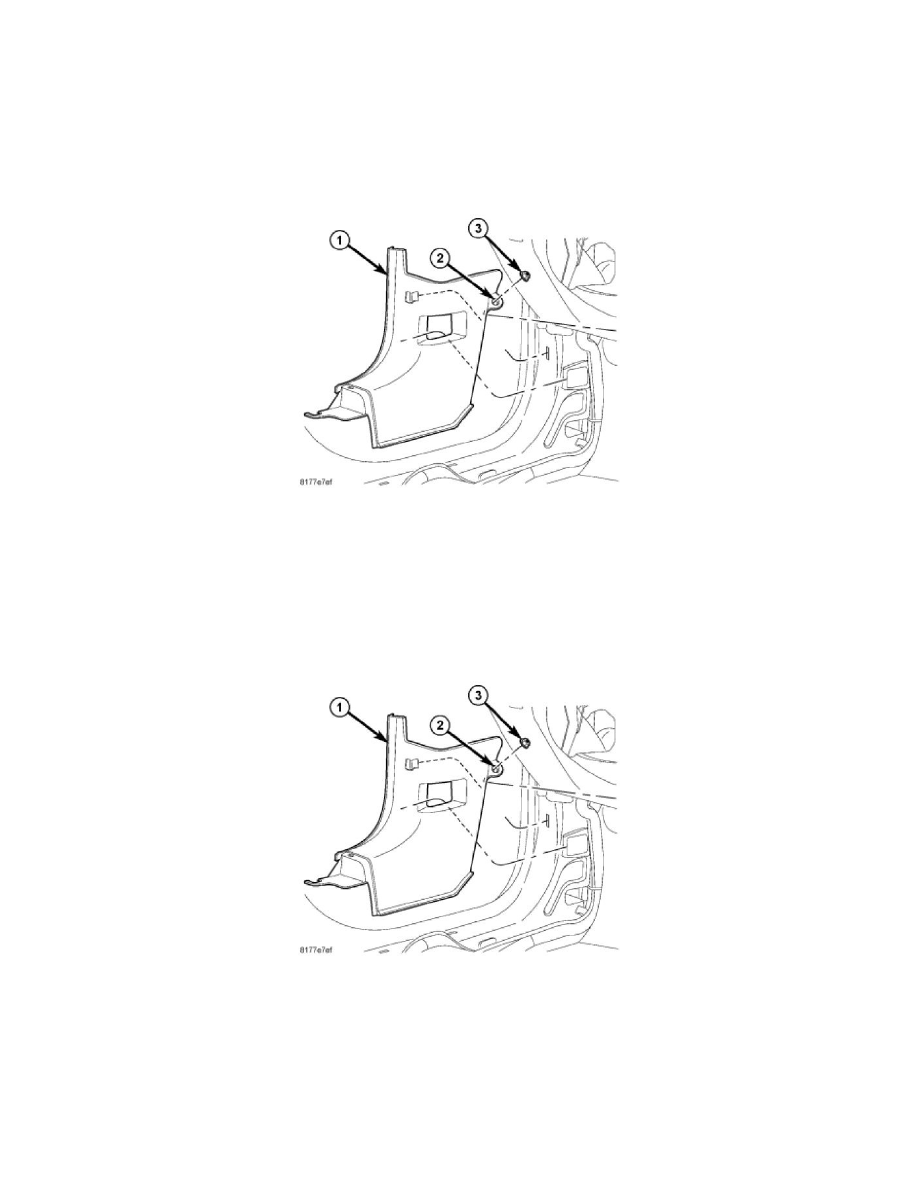

NOTE: Left hand shown, right side similar.
1. Remove door sill scuff plate.
2. Remove nut (3) securing trim (1) to dash.
3. Using trim stick C-4755, pry up on cowl trim and remove from vehicle.
Installation
INSTALLATION
1. Place tab cowl trim (1) over stud on dash and wrap door flange.
2. Align hole for park brake release handle and clip on trim to hole (2) in cowl side.
3. Install nut (3) and fasten until cowl trim is seated.
