Caliber L4-2.0L VIN B (2007)
Thickness variation in a rotor's braking surface can result in pedal pulsation, chatter and surge. This can also be caused by excessive runout in the rotor
or the hub.
Rotor thickness variation measurements should be made in conjunction with measuring runout. Measure thickness of the brake rotor (2) at 12 equal
points around the rotor braking surface with a micrometer (1) at a radius approximately 25 mm (1 inch) from edge of rotor. If thickness measurements

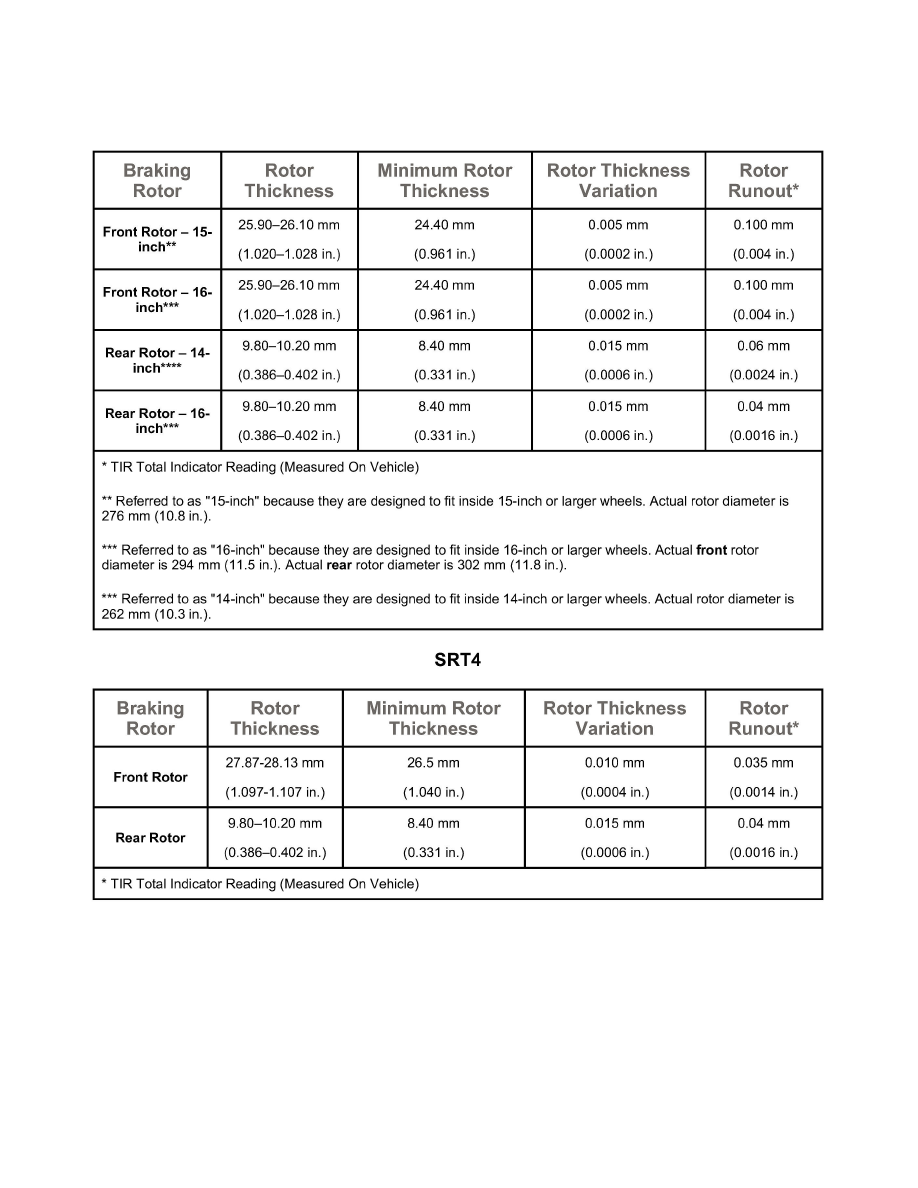

vary beyond the specification listed in the specification table.
ROTOR RUNOUT
On-vehicle rotor runout is the combination of the individual runout of the hub face and the runout of the brake rotor (hub runout can be measured
separately). To measure rotor runout on the vehicle:
1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.
3. Install standard wheel mounting nuts, flat side to rotor, on all the wheel studs (2). Progressively tighten the nuts in a crisscross pattern to 135 Nm
(100 ft. lbs.).
4. Mount Dial Indicator (1), Special Tool C-3339A, with Wheel, Special Tool 25w, or equivalent, to the knuckle. Position the dial indicator wheel to
contact the rotor braking surface approximately 10 mm (0.39 in.) from the outer edge of the rotor (3).
