Caravan FWD V6-3.3L VIN 3 Flex Fuel (2001)
Sun Visor: Service and Repair
Sun Visor
SUN VISOR
REMOVAL
All vehicles with driver and passenger side air bags must have a colored coded five Bullet point air bag warning label applied to the sun visor, verify
label availability and ensure the label is installed.
1. Disengage sun visor from center support.

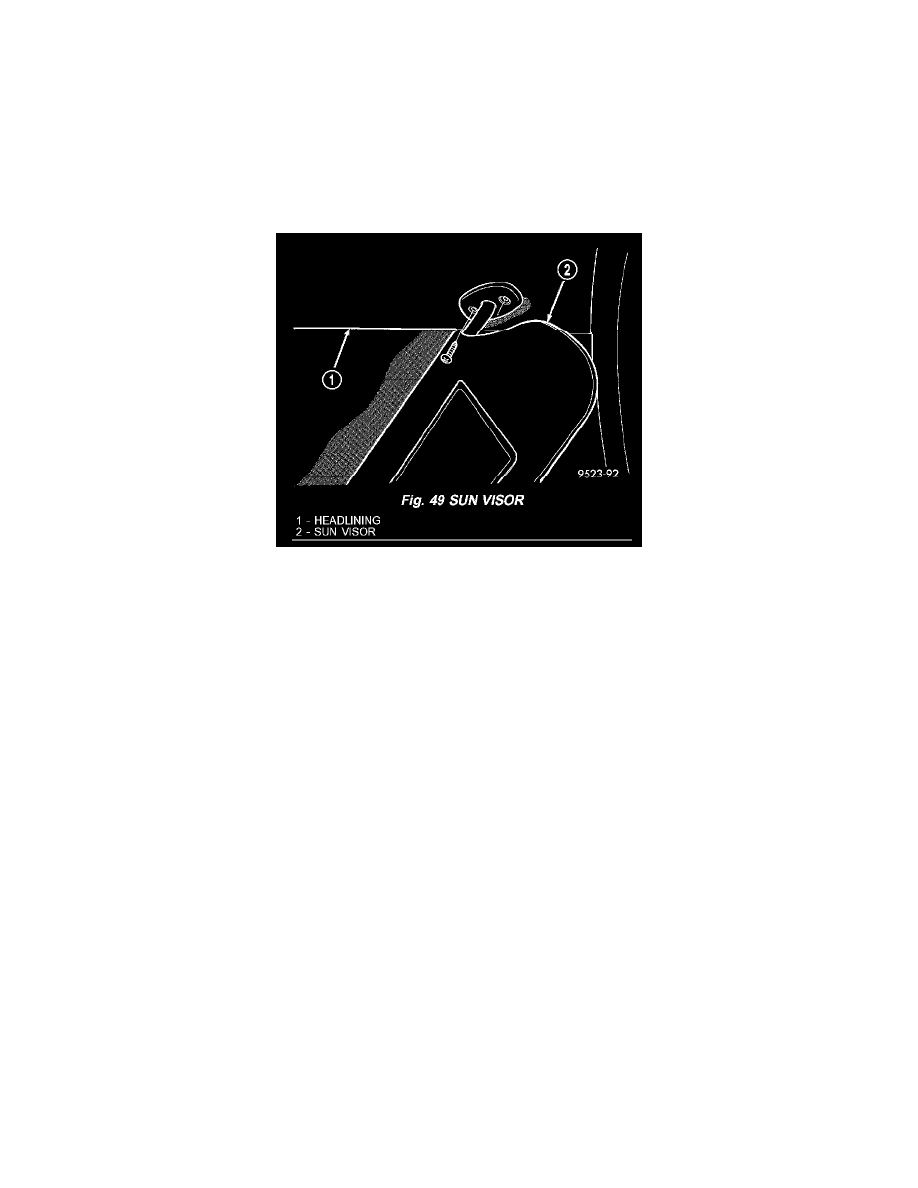

Fig. 49
2. Remove screws attaching sun visor to roof header (Fig. 49).
3. Remove sun visor from roof.
4. If equipped, disconnect illuminated vanity mirror wire connector from body harness.
5. Remove sun visor from vehicle.
INSTALLATION
All vehicles with driver and passenger side air bags must have a colored coded five Bullet point air bag warning label applied to the sun visor, verify
label availability and ensure the label is installed.
1. Place sun visor in position on vehicle.
2. Connect illuminated vanity mirror wire connector into body harness.
3. Place sun visor in position on roof.
4. Install screws to hold sun visor to roof header (Fig. 49).
5. Engage sun visor into center support.
