Caravan FWD V6-3.3L VIN 3 Flex Fuel (2001)
LIFTGATE SILL PLATE
REMOVAL

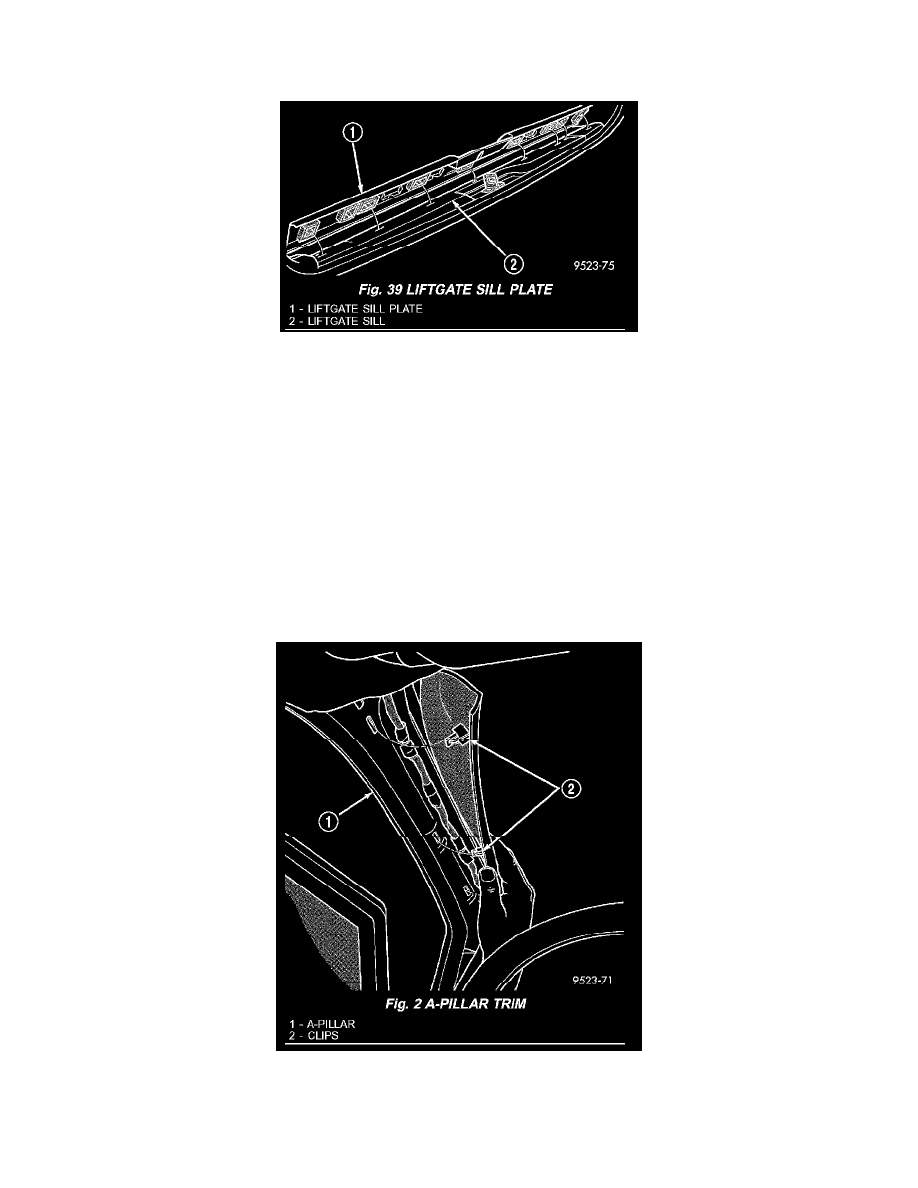

Fig. 39
1. Disengage hidden clips holding sill plate to lift-gate door opening sill (Fig. 39).
2. Remove sill plate from vehicle.
INSTALLATION
1. Place sill plate in position on vehicle.
2. Align engage hook tabs at end of liftgate sill plate to D-pillar trim.
3. Engage hidden clips to hold sill plate to liftgate door opening sill.
A-Pillar Trim
A - PILLAR TRIM
REMOVAL
1. Remove the assist handle if equipped.
Fig. 2
2. Disengage hidden clips holding A-pillar trim panel to A-pillar (Fig. 2).
3. Remove A-pillar trim from vehicle.
