Caravan FWD V6-3.3L VIN 3 Flex Fuel (2001)

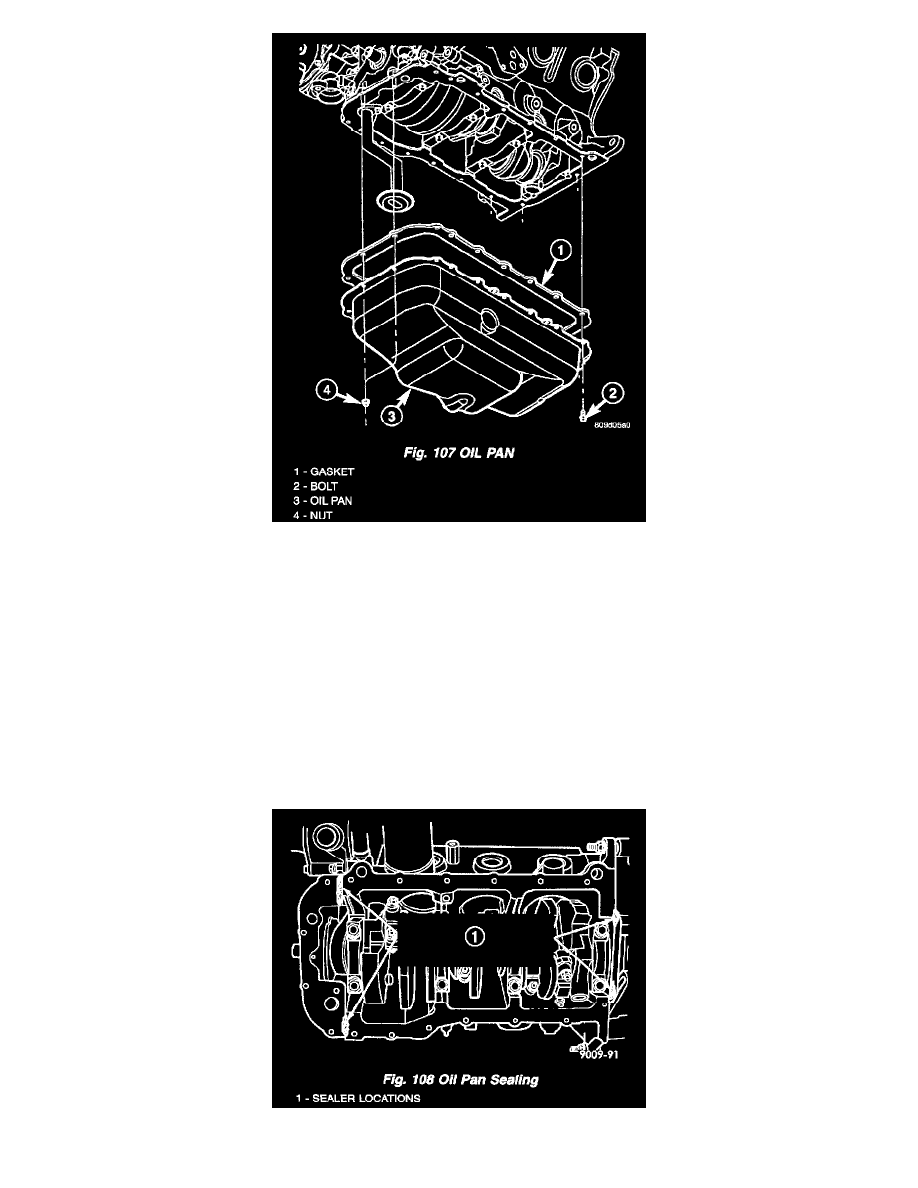

6. Remove oil pan fasteners (Fig. 107).
7. Remove the oil pan and gasket (Fig. 107).
CLEANING
1. Clean oil pan with solvent and wipe dry with a clean cloth.
2. Clean all gasket material from mounting surfaces of pan and block.
3. Clean oil screen and pick-up tube in clean solvent.
INSPECTION
1. Inspect oil drain plug and plug hole for stripped or damaged threads and repair as necessary. Install a new drain plug gasket. Tighten to 27 Nm (20
ft. lbs.).
2. Inspect oil pan mounting flange for bends or distortion. Straighten flange if necessary.
3. Inspect condition of oil screen and pick-up tube.
INSTALLATION
1. Clean sealing surfaces and apply a 1/8 inch bead of Mopar Engine RTV GEN II at the parting line of the chain case cover and the rear seal retainer
