Page 5
background image

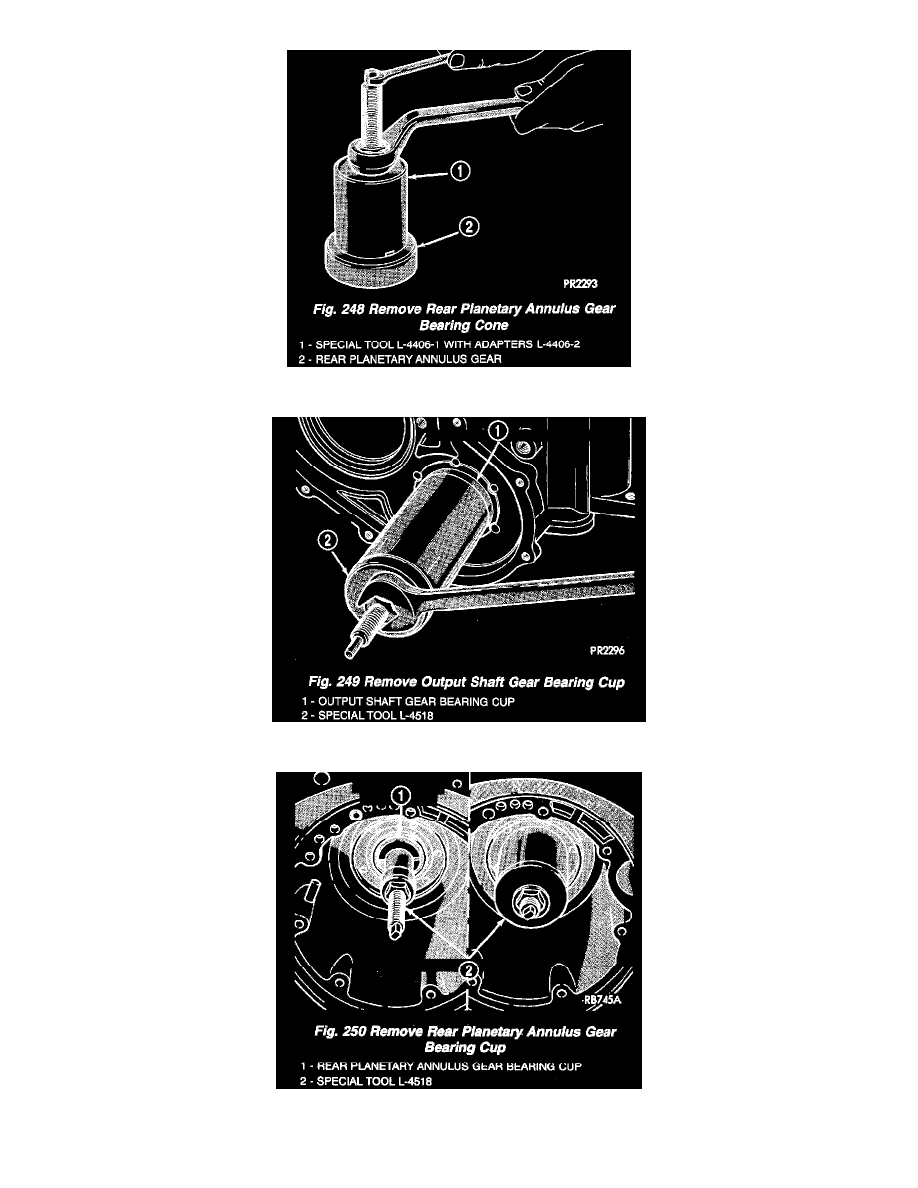

10. Using Tool L-4406-1 and adapters L-4406-2, remove rear planetary annulus gear bearing cone (Fig. 248).

11. Using Tool L-4518, remove output shaft gear bearing cup from rear of transaxle case (Fig. 249).

12. Using Tool L-4518, remove output shaft gear bearing cup from inside transaxle case (Fig. 250).
