Challenger V6-3.5L (2009)
Front Door Window Glass: Adjustments
ADJUSTMENTS
NOTE: All measurements are in millimeters.
1. Check and adjust the door if necessary. See: Adjustments
2. Remove the door trim panel and watershield to gain access to the regulator mechanism. See: Front Door Panel/Service and Repair/Front Door
Watershield - Removal
NOTE: Partially loosening the glass attachment fasteners (2) allows the glass to stay in place while the glass is being adjusted. If the fasteners
are too loose, the glass will lose all position adjustments completely.

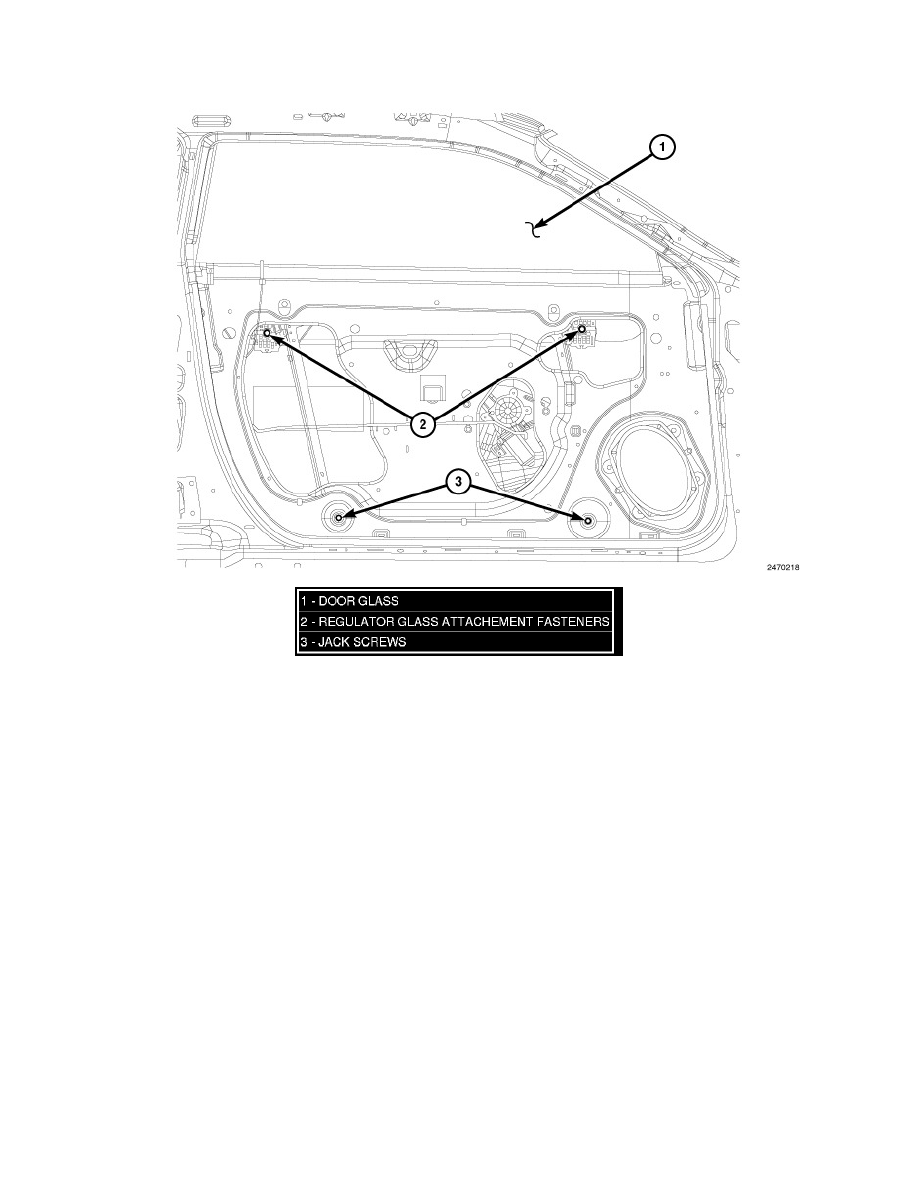

3. With the glass (1) in the full up position, partially loosen the regulator glass clamp fasteners (2).
