Driver Seat Horizontal Adjuster Motor (Front Seat) 4 Way|Page 8607 > < Driver Seat Horizontal Adjuster Motor (Front Seat) 4 Way

Challenger V6-3.5L (2009)

Page 1
background image

Power Seat Motor: Diagrams
Driver Seat Recliner Adjuster Motor (Early Build) (Front Seat Back Jumper) 4 Way

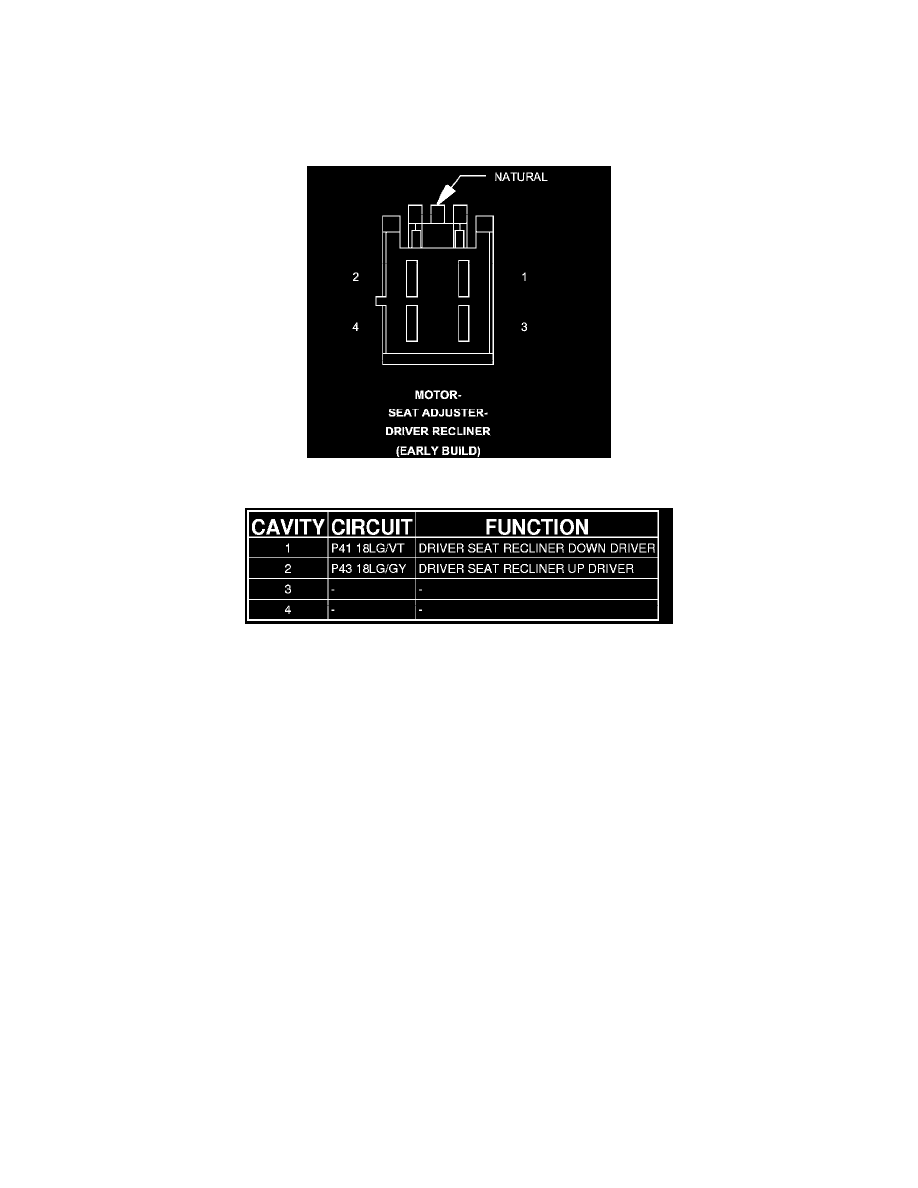

Connector (EARLY BUILD) - (FRONT SEAT BACK JUMPER) 4 WAY



 MOTOR-SEAT ADJUSTER-DRIVER RECLINER (EARLY BUILD) - (FRONT SEAT BACK JUMPER) 4 WAY
