Challenger V6-3.5L (2009)
Seat Cover: Service and Repair
Seat Cushion Cover - Installation
Front
INSTALLATION
1. Before proceeding with the following repair procedure, review all warnings and cautions. See: Service Precautions
2. Install the foam to the seat pan, if required.
3. Carefully install the seat cover to the seat foam installing hog rings as required.
4. Engage the seat cover J-clips.

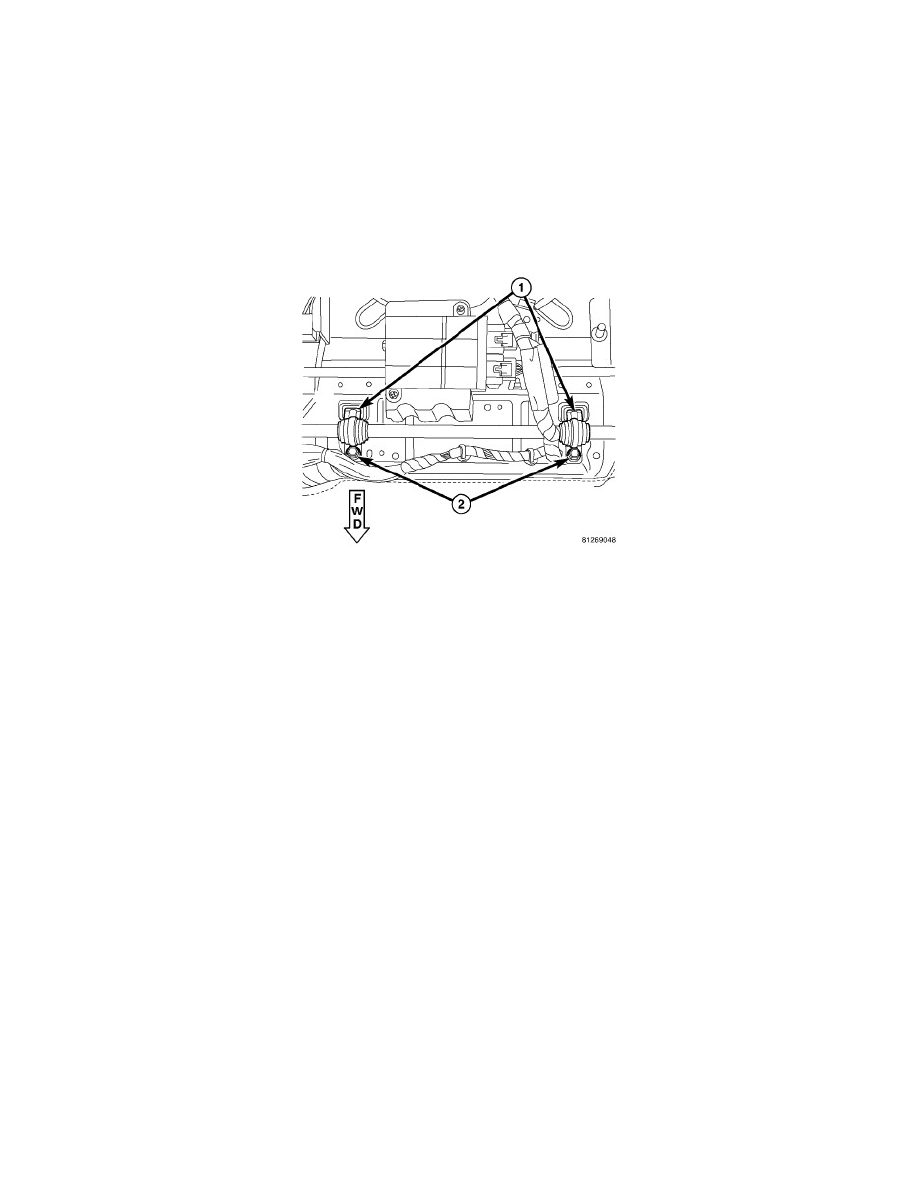

5. Position the seat cushion assembly onto the seat frame and install the clamps (1).
6. Connect the wire harness to the seat cushion pan, if equipped.
7. Install the bolts (2) and tighten to 10 Nm (89 in. lbs.).
8. Install the seat to the vehicle. See: Service and Repair/Seat - Installation.
Rear
INSTALLATION
1. Install seat cushion foam, if required.
2. Carefully install the seat cover, installing any hog rings as necessary.
3. Engage the seat cover J-clips.
4. Install the seat cushion to the vehicle. See:
