Challenger V6-3.5L (2009)
Brakes and Traction Control
Antilock Brakes / Traction Control Systems
Hydraulic Control Assembly - Antilock Brakes / Component Information
Service and Repair / Removal and Replacement
Page 5063
Page 3

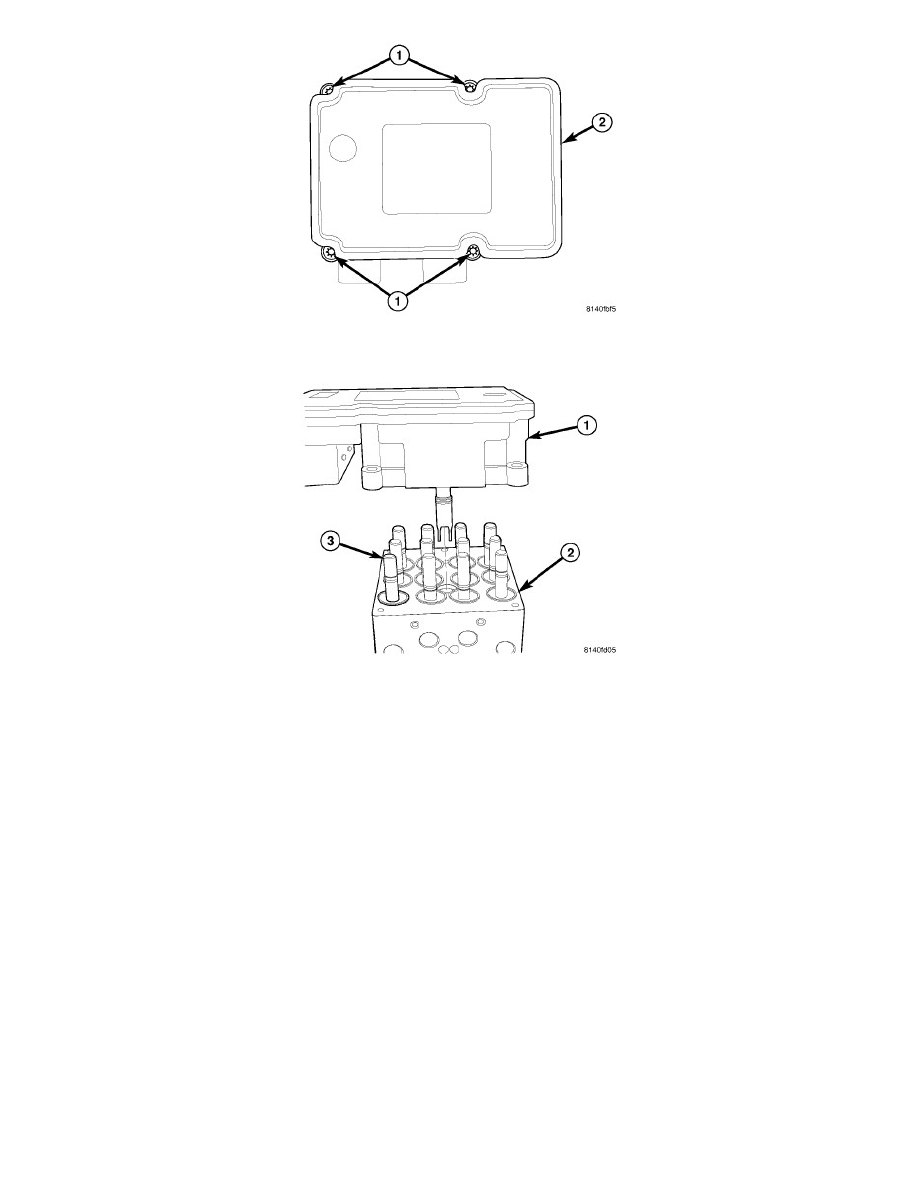

2. Remove four screws (1) attaching ABM (2) to HCU.
3. Separate ABM (1) from HCU (2).
