Challenger V6-3.5L (2009)

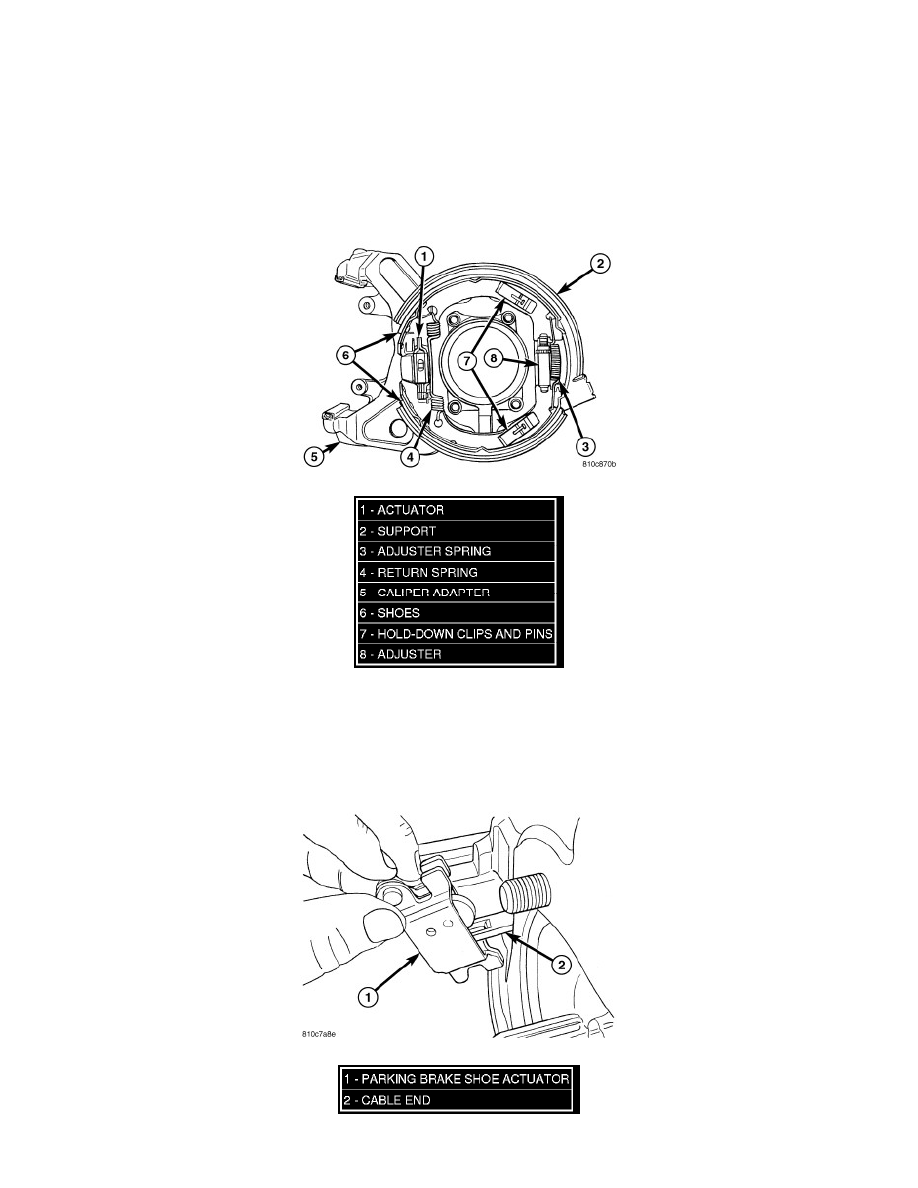

5. Install return spring (4) to lower shoe (6).
6. Install upper shoe (6) against support plate and onto shoe actuator lever.
7. Install upper brake shoe hold-down pin (7) through rear of support and upper shoe.
8. Install upper brake shoe hold-down clip (7).
9. Attach return spring (4) to upper shoe (6).
10. Install shoe adjuster (8). Place end of adjuster with star wheel upward.
11. Install parking brake shoe adjuster spring (3).
12. Using Brake Shoe Gauge, C-3919, or equivalent, measure inside diameter of parking brake drum portion of rotor. Set gauge.
