Challenger V6-3.5L (2009)

Page 1
background image

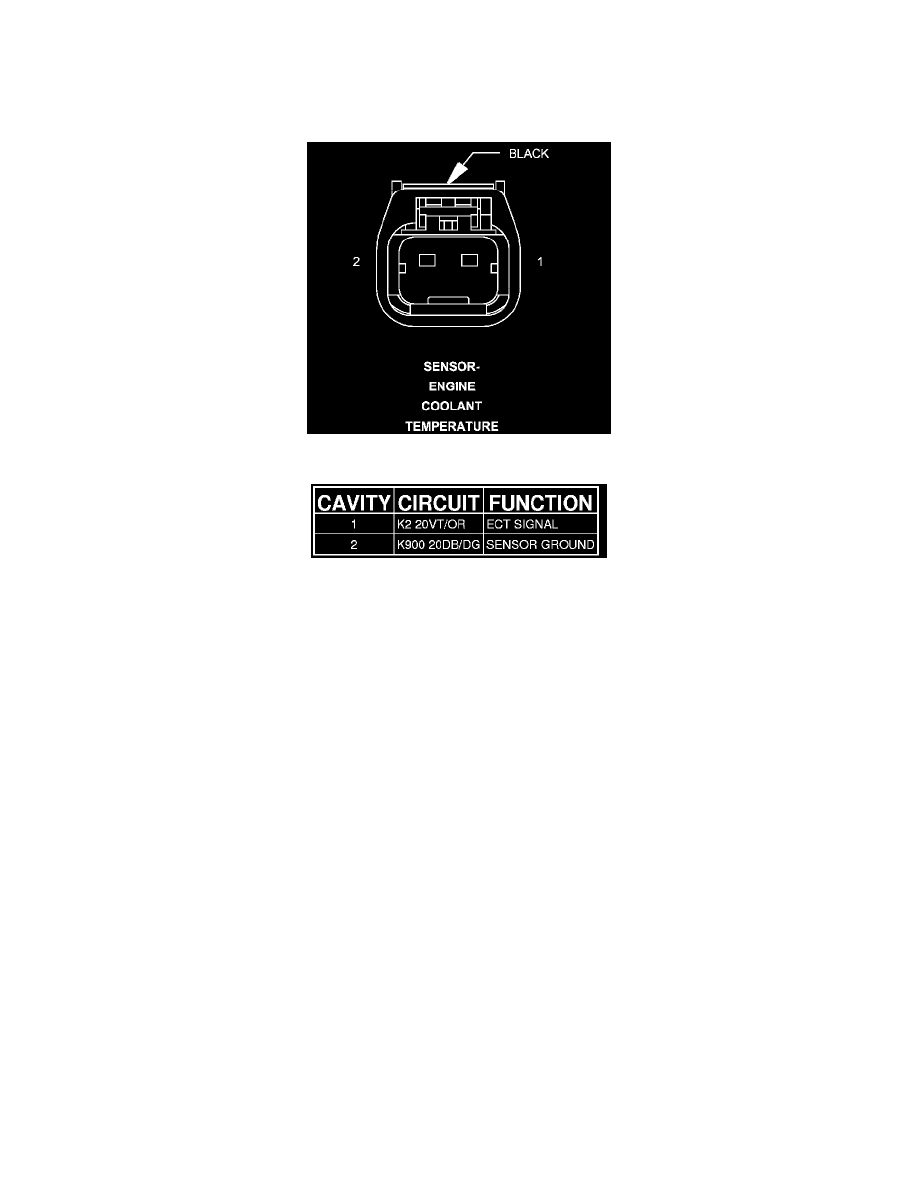

Coolant Temperature Sensor/Switch (For Computer): Diagrams

Connector - (ENGINE) 2 WAY



 SENSOR-ENGINE COOLANT TEMPERATURE - (ENGINE) 2 WAY
