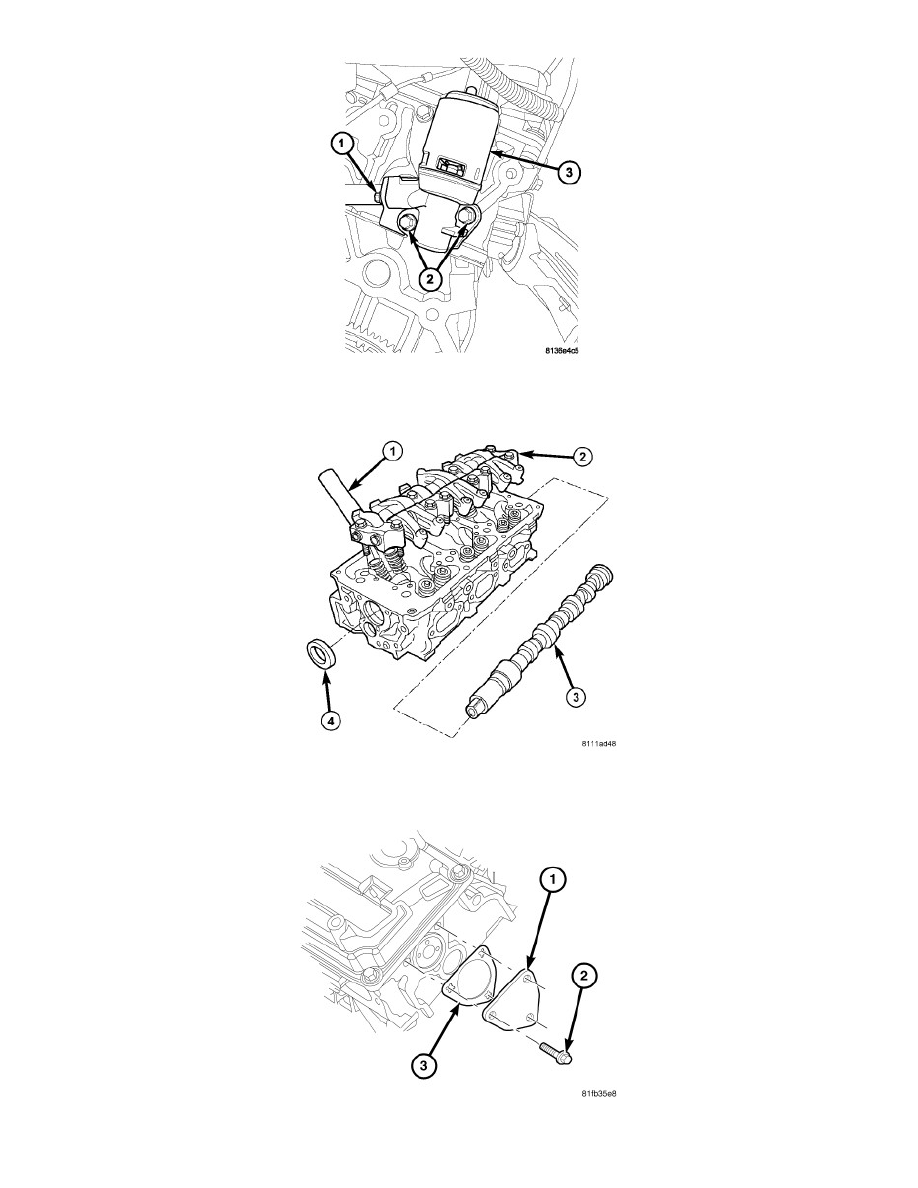

11. Remove the EGR valve (3) with two bolts (2) and gasket.

12. Remove eight bolts and right cylinder head cover.
13. Remove ten bolts and right rocker arm assembly (2).

14. Remove three bolts (2) and the right rear camshaft thrust plate (1).
