Challenger V6-3.5L (2009)
Timing Belt Tensioner: Service and Repair
Engine Timing Tensioner - Removal
Tensioner
TENSIONER
1. The timing belt tensioner removal is part of the timing belt removal procedure See: Timing Belt/Service and Repair/Removal and
Replacement/Timing Belt & Sprockets - Removal.
Tensioner Pulley Assembly
TENSIONER PULLEY ASSEMBLY
1. Remove the timing belt. See: Timing Belt/Service and Repair/Removal and Replacement/Timing Belt & Sprockets - Removal

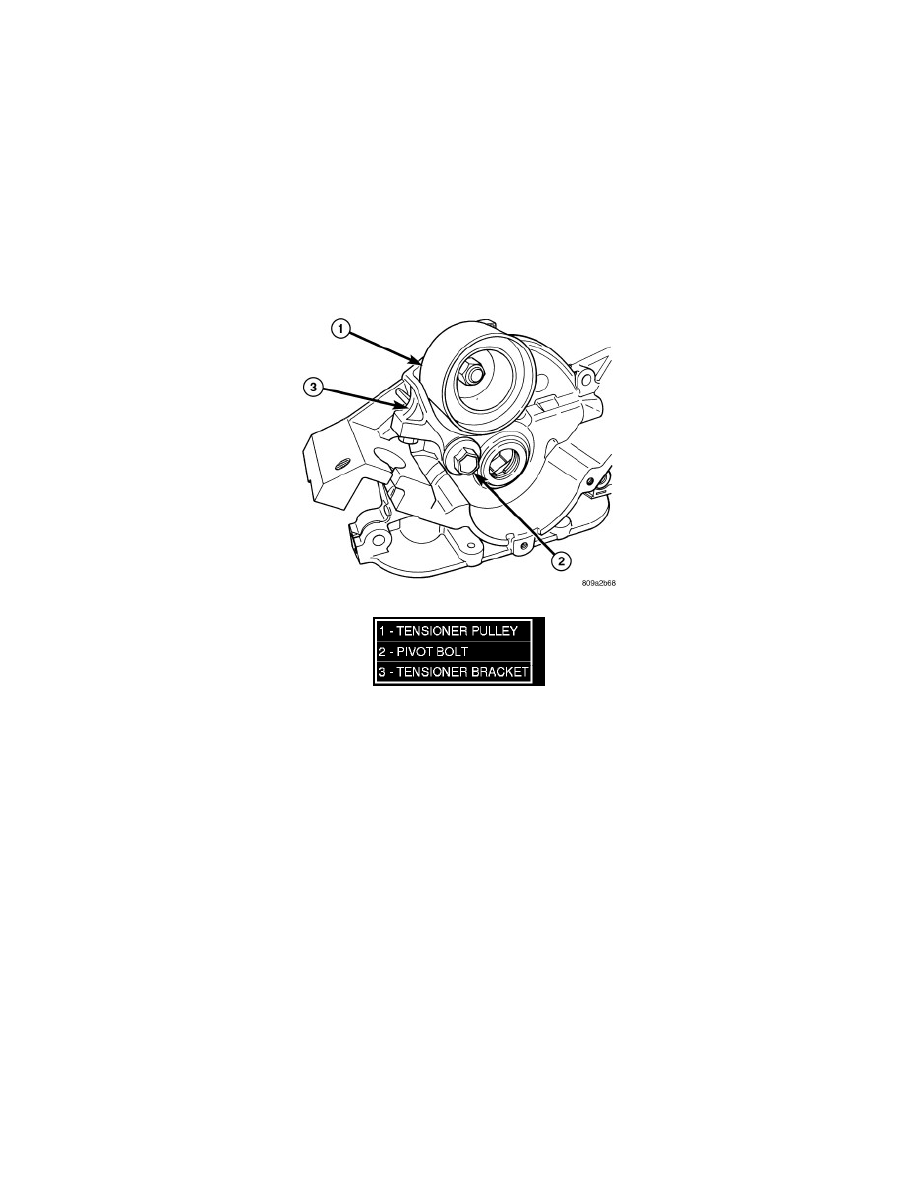

2. Remove the timing belt tensioner pulley (1) and bracket (3) assembly by unscrewing the pivot bolt (2) from the oil pump housing.
