Challenger V6-3.5L (2009)
Evaporator Temperature Sensor / Switch: Service and Repair
Evaporator Temperature Sensor - Installation
INSTALLATION

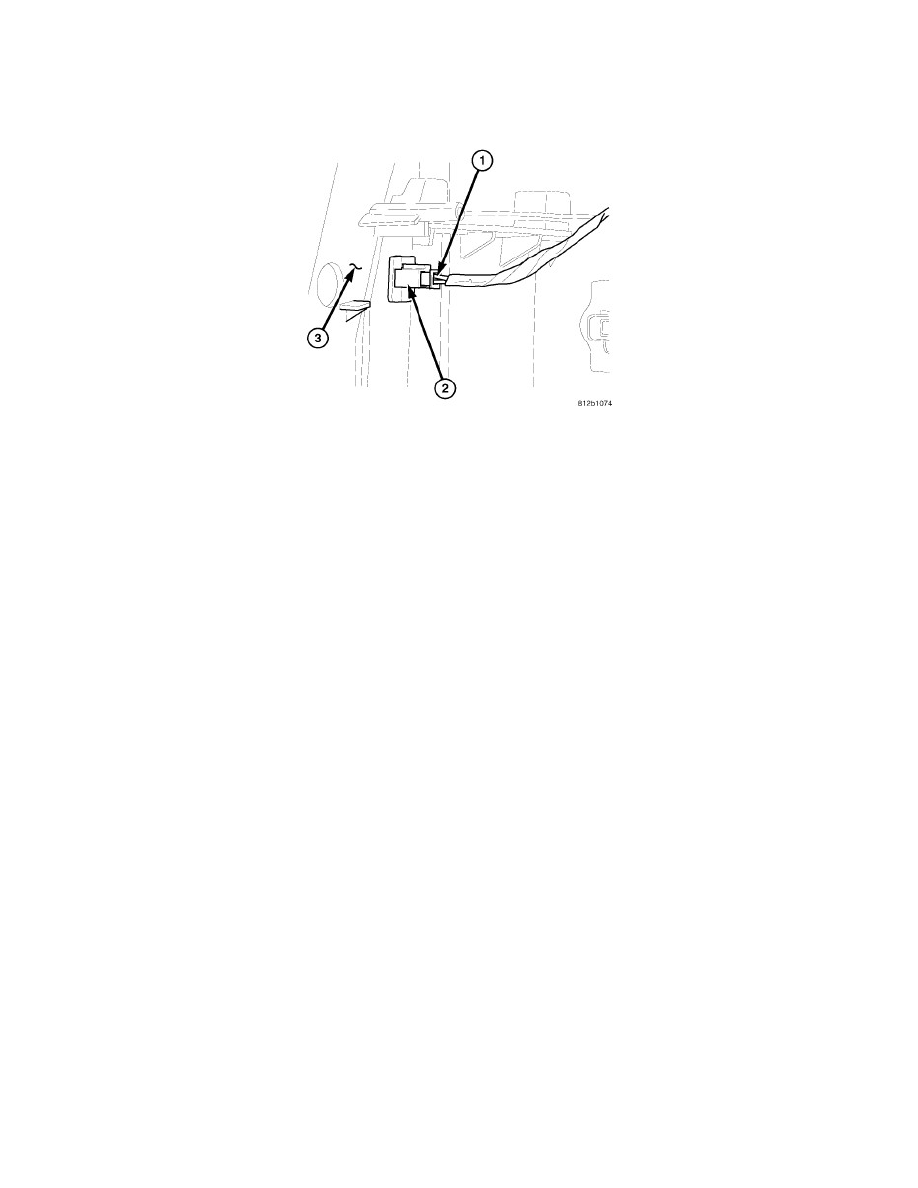

1. Install the evaporator temperature sensor (2) into HVAC housing (3).
2. Connect the HVAC wire harness connector (1) to the evaporator temperature sensor.
3. Install the glove box into the instrument panel See: Body and Frame/Interior Moulding / Trim/Glove Compartment/Service and Repair/Instrument
Panel Glove Box - Installation.
4. Reconnect the negative battery cable.
