Challenger V6-3.5L (2009)
Cabin Air Filter: Description and Operation
DESCRIPTION

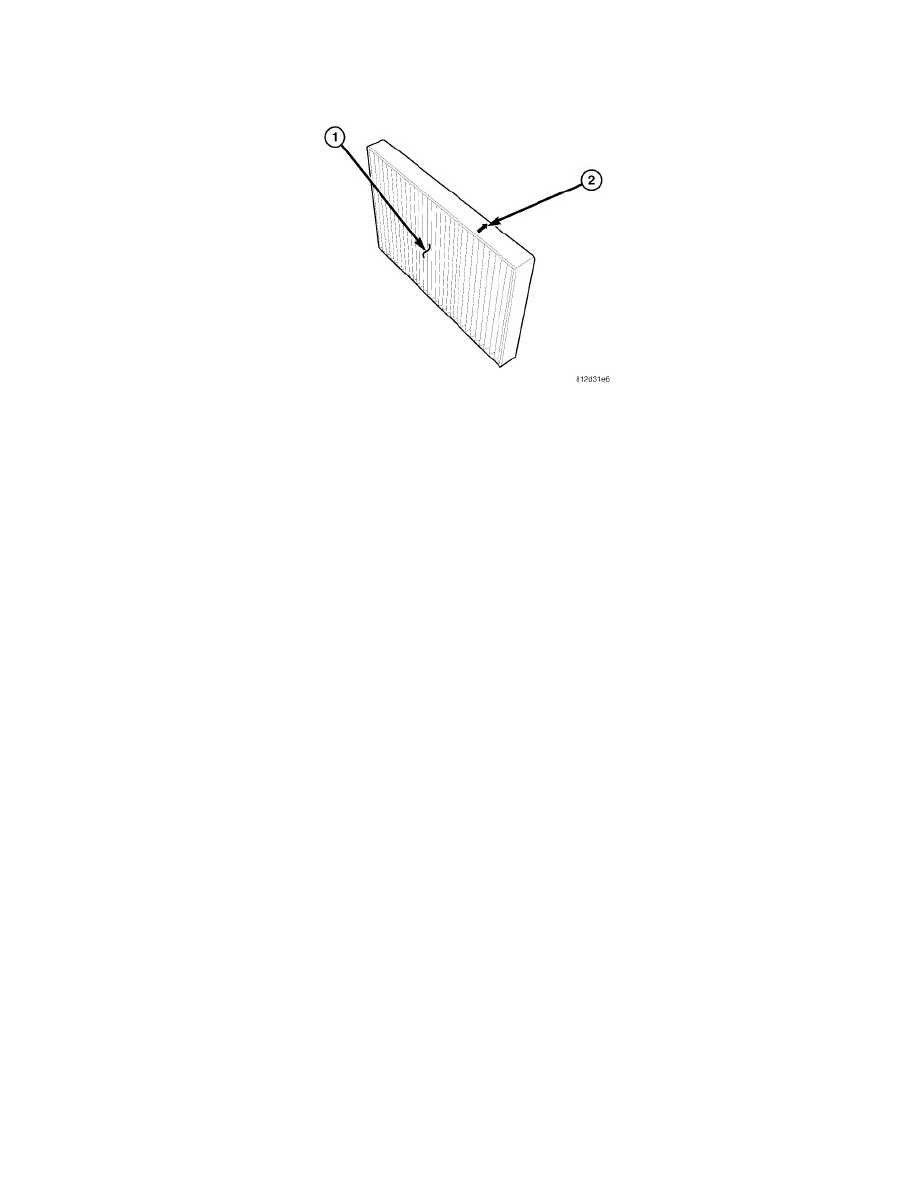

All models are equipped with a particulate air filter (1) that helps purify the outside air entering the HVAC housing. The filter is mounted in the engine
compartment, inside of the fresh air inlet housing of the heating-A/C system.
The filter should be replaced at least every 24,000 km (15,000 miles) or each year and checked if heating-A/C system performance seems lower than
expected. The particulate air filter is labeled with "REAR OF VEHICLE" and an arrow (2) to indicate air flow direction through the filter.
