Challenger V6-3.5L (2009)
Power Distribution Module: Service and Repair
Totally Integrated Power Module (TIPM) - Installation
INSTALLATION
CAUTION: The original Cab Compartment Node (CCN) and Powertrain Control Module (PCM) must be installed and functioning properly
prior to powering up the new Totally Integrated Power Module (TIPM). The TIPM receives vehicle configuration data from the
CCN and Vehicle Identification Number information from the PCM. If configuration information becomes lost or corrupted, the
data can be obtained from DealerCONNECT
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. See: Starting and
Charging/Battery/Service and Repair/Procedures/Battery Reconnection .

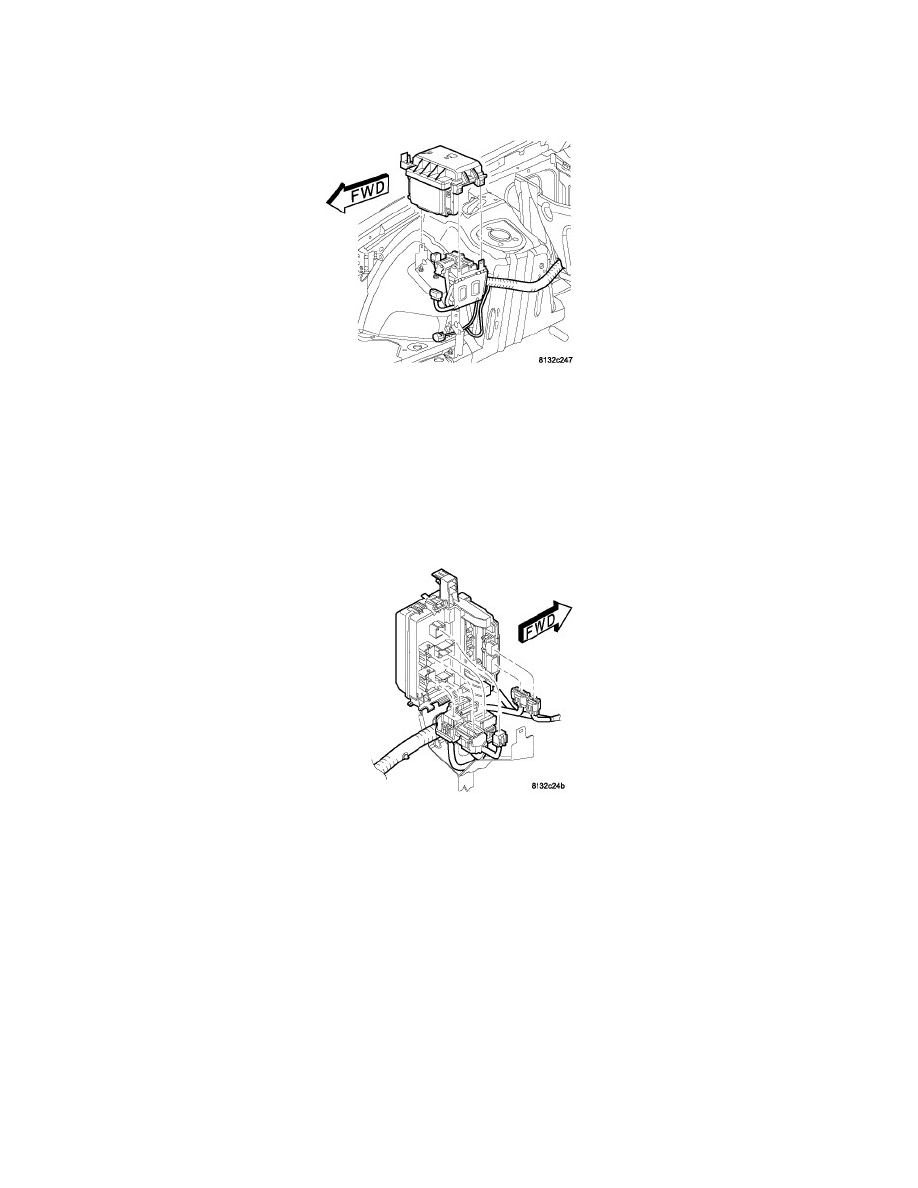

1. Position Totally Integrated Power Module (TIPM) to vehicle. Engage the three retaining clips.
2. Disengage the outboard retaining clip and rotate the TIPM to access wire harness connectors.
3. Connect electrical harness connectors to TIPM.
