Data Link Connector: Diagrams

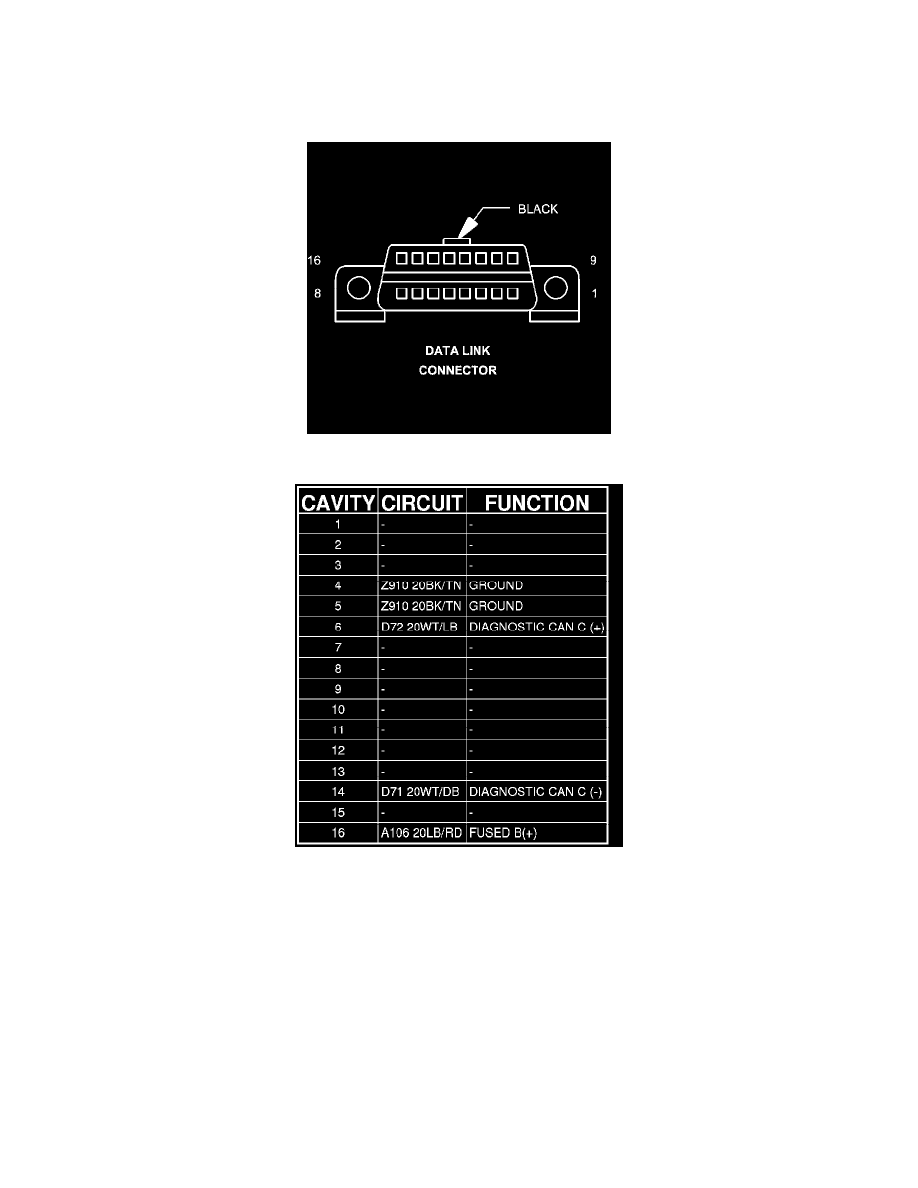

Connector - (INSTRUMENT PANEL) 16 WAY

DATA LINK CONNECTOR - (INSTRUMENT PANEL) 16 WAY
