Challenger V6-3.5L (2009)
Fuel Level Sensor: Service and Repair
Fuel Pump Module - Installation
INSTALLATION
NOTE: Whenever the fuel pump module is serviced, the rubber O-ring seal must be replaced.
1. Install a new rubber O-ring seal.
2. Lower the fuel pump module into the fuel tank allowing enough room to make the lower connections.

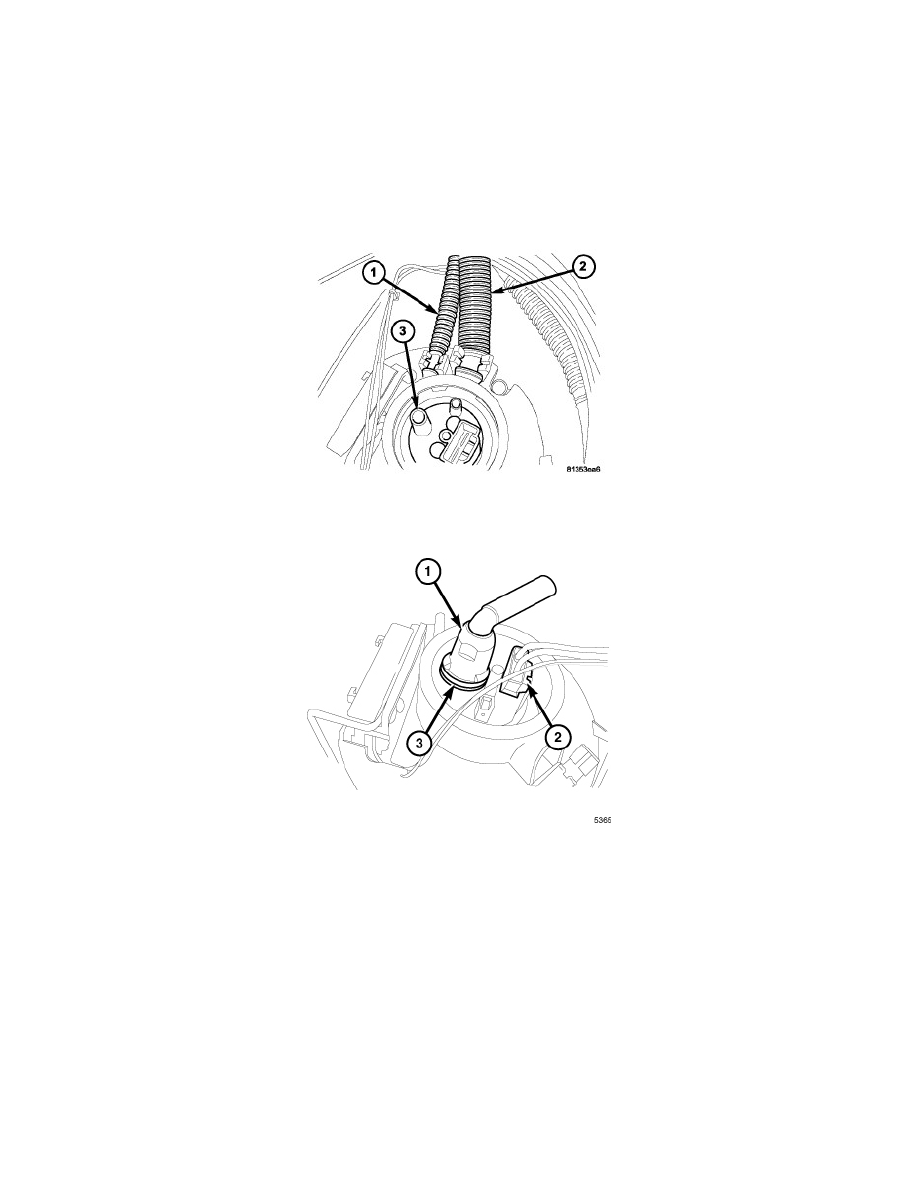

3. Connect the fuel pump module fuel return lines (1,2).
4. Connect the fuel supply line (1) to the fuel pump module.
5. Connect the lower fuel pump module electrical connector (2).
