Page 3
background image

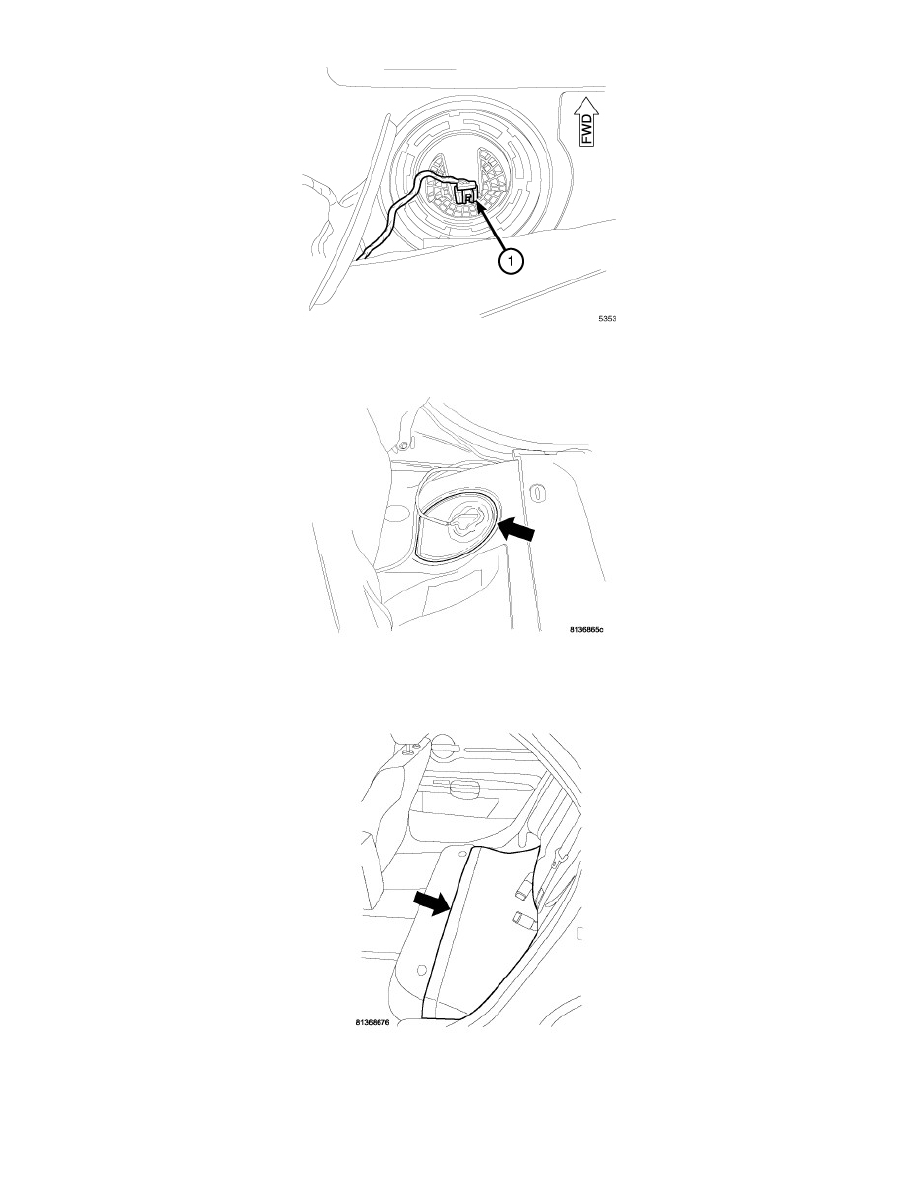

14. Rotate the breaker bar clockwise until all seven notches of the lock-ring have engaged.

15. Connect the electrical connector (1) to the fuel pump module.

16. Install the fuel pump module rubber access plug.

17. Lower the foam pad covering back into place.
