Variable Induction Control Valve > < Variable Induction Control Solenoid|Locations|Page 3667

Challenger V6-3.5L (2009)

Page 1
background image

Variable Induction Control Solenoid: Diagrams

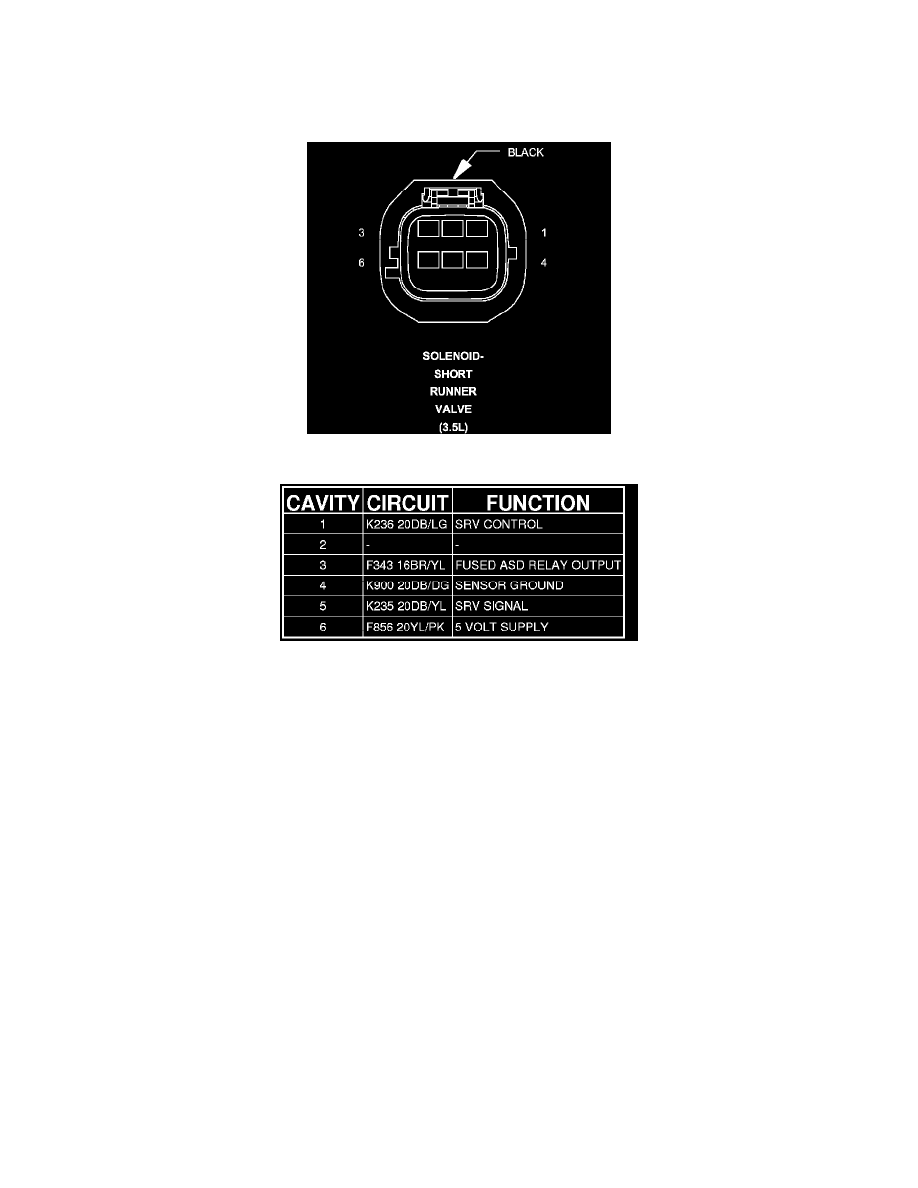

Connector (3.5L) - (ENGINE) 6 WAY



 SOLENOID-SHORT RUNNER VALVE (3.5L) - (ENGINE) 6 WAY

Variable Induction Control Valve > < Variable Induction Control Solenoid|Locations|Page 3667
