Challenger V6-3.5L (2009)
Heated Glass Element Relay: Description and Operation
Rear Defogger Relay - Operation
OPERATION
The ISO-standard rear window defogger (EBL) relay is an electromechanical switch that uses a low current input controlled by the A/C-heater control to
control the high current output to the rear window defogger grid lines. The movable, common feed relay contact is held against the fixed, normally
closed relay contact by spring pressure. When the electromagnetic relay coil is energized, it draws the movable common feed relay contact away from
the fixed, normally closed relay contact and, holds it against the fixed, normally open relay contact. This action allows high current to flow to the rear
window defogger grid lines.
When the relay coil is de-energized, spring pressure returns the movable relay contact back against the fixed, normally closed contact point. The resistor
or diode is connected in parallel with the relay coil, and helps to dissipate voltage spikes and electromagnetic interference that can be generated as the
electromagnetic field of the relay coil collapses.

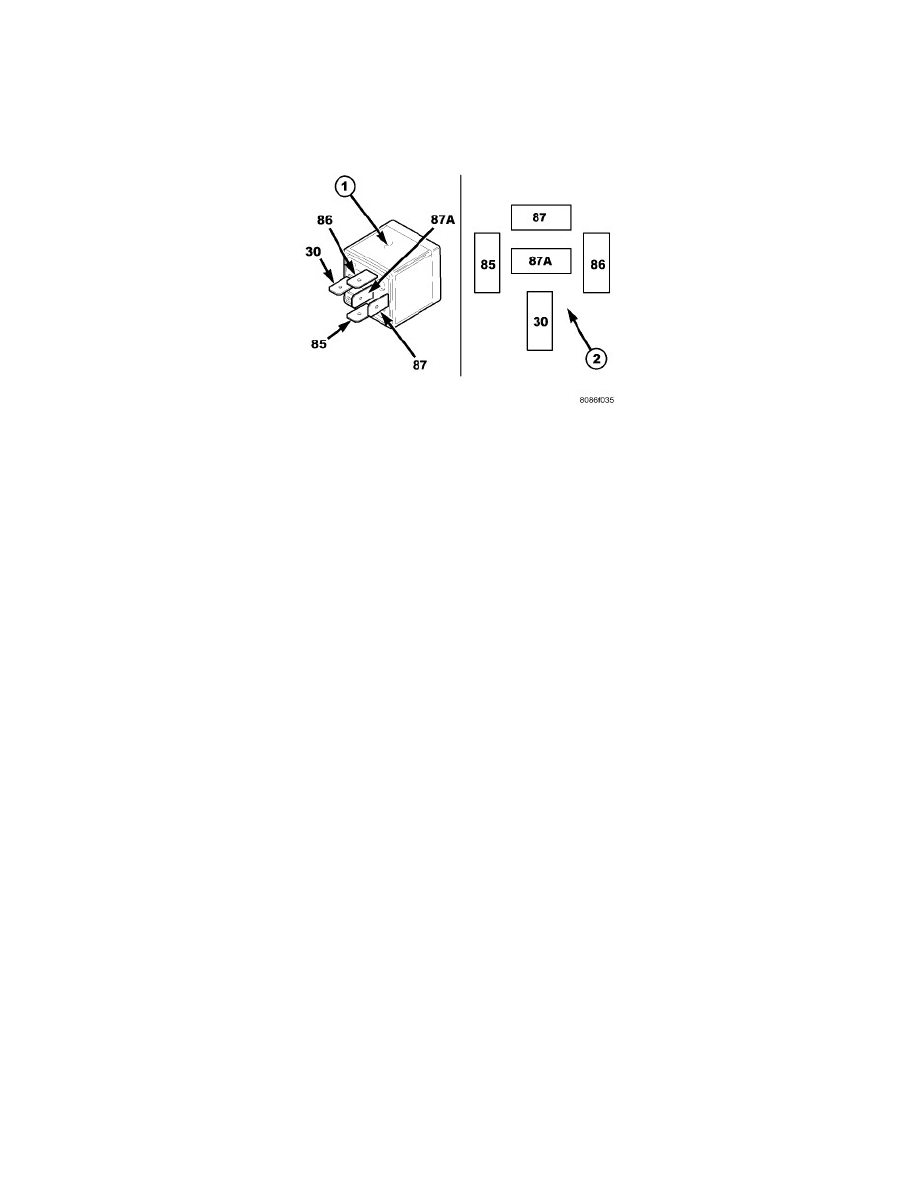

The EBL relay terminals are connected to the vehicle electrical system through a receptacle in the power distribution center (PDC). The inputs and
outputs of the EBL relay include:
-
The common feed terminal (30) receives a battery current input from a fused B(+) circuit at all times.
-
The coil ground terminal (85) receives a ground through the EBL relay control circuit only when the A/C-heater control electronically pulls the
circuit to ground.
-
The coil battery terminal (86) receives a battery current input from a fused B(+) circuit at all times.
-
The normally open terminal (87) provides battery current to the rear window defogger grid through the EBL relay output circuit and a fuse located
in the PDC only when the EBL relay coil is energized.
-
The normally closed terminal (87A) is not connected to any circuit in this application, but provides a battery current output only when the EBL
relay coil is de-energized.
The EBL relay cannot be repaired and must be replaced if inoperative or damaged. See Wiring Information for diagnosis and testing of the EBL relay
and for complete rear window defogger (EBL) wiring diagrams.
