Challenger V6-3.5L (2009)

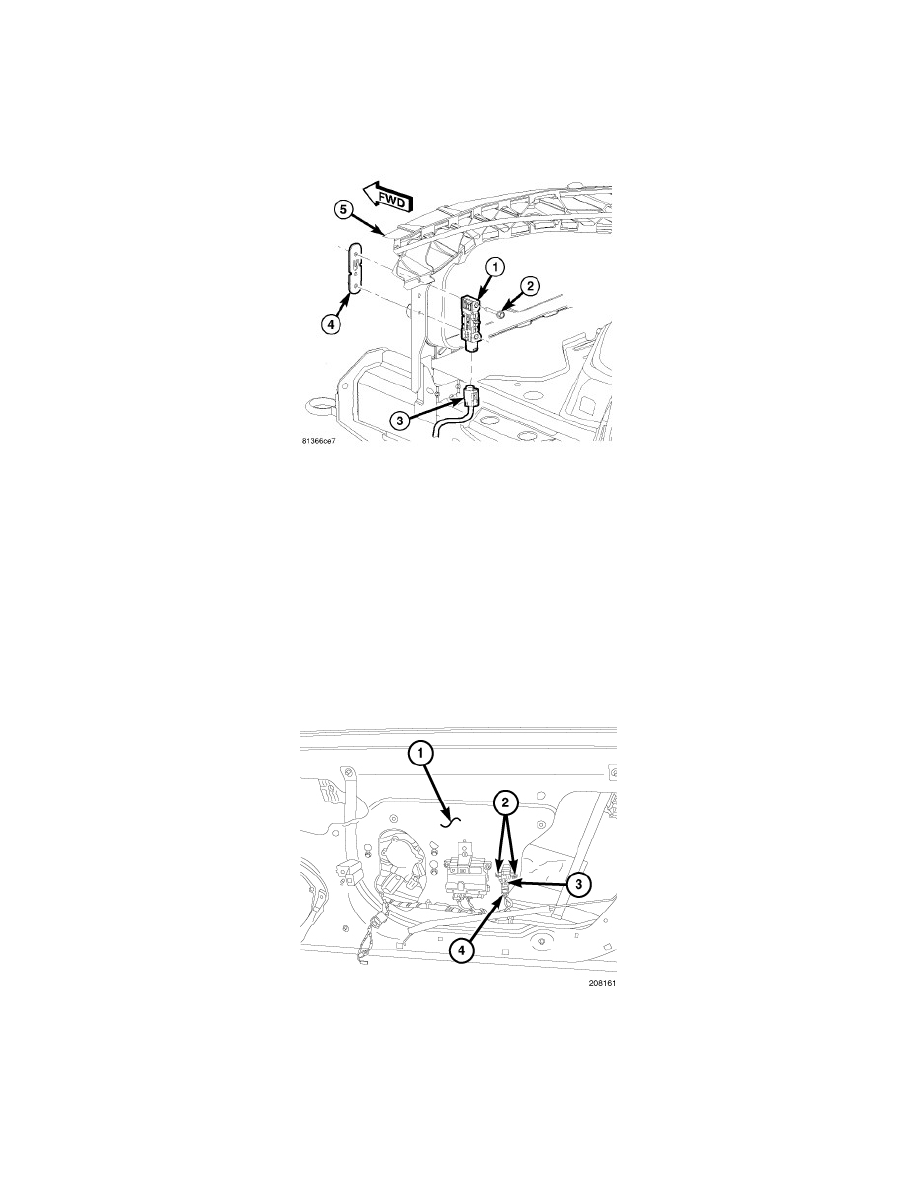

1. Position the quarter panel mounted side impact sensor (4) in the correct location and install the two retaining screws (1). Tighten screws (2) to 7
Nm (62 in. lbs.).
2. Connect the quarter panel mounted side impact sensor electrical connector (2).
3. Install the lower quarter trim panel.See: Body and Frame/Interior Moulding / Trim/Trim Panel/Service and Repair/Luggage Compartment
Trim/Quarter Trim Panel - Installation.
WARNING: Do not connect the battery negative cable See: Restraint Systems/Testing and Inspection/Component Tests and General Diagnostics . If
the system test is not performed first it may result in serious or fatal injury.
