Challenger V6-3.5L (2009)
3. While holding toe adjustment cam bolt from rotating (cam facing upward), Install cam washer (2) and nut (3) securing toe link at crossmember (1).
Do not tighten nut at this time.
4. If equipped, Attach wheel speed sensor cable (2) to toe link.
5. Raise rear exhaust back to mounted position and connect exhaust isolators at muffler and resonators hangers. Remove jack or stand below exhaust
muffler.

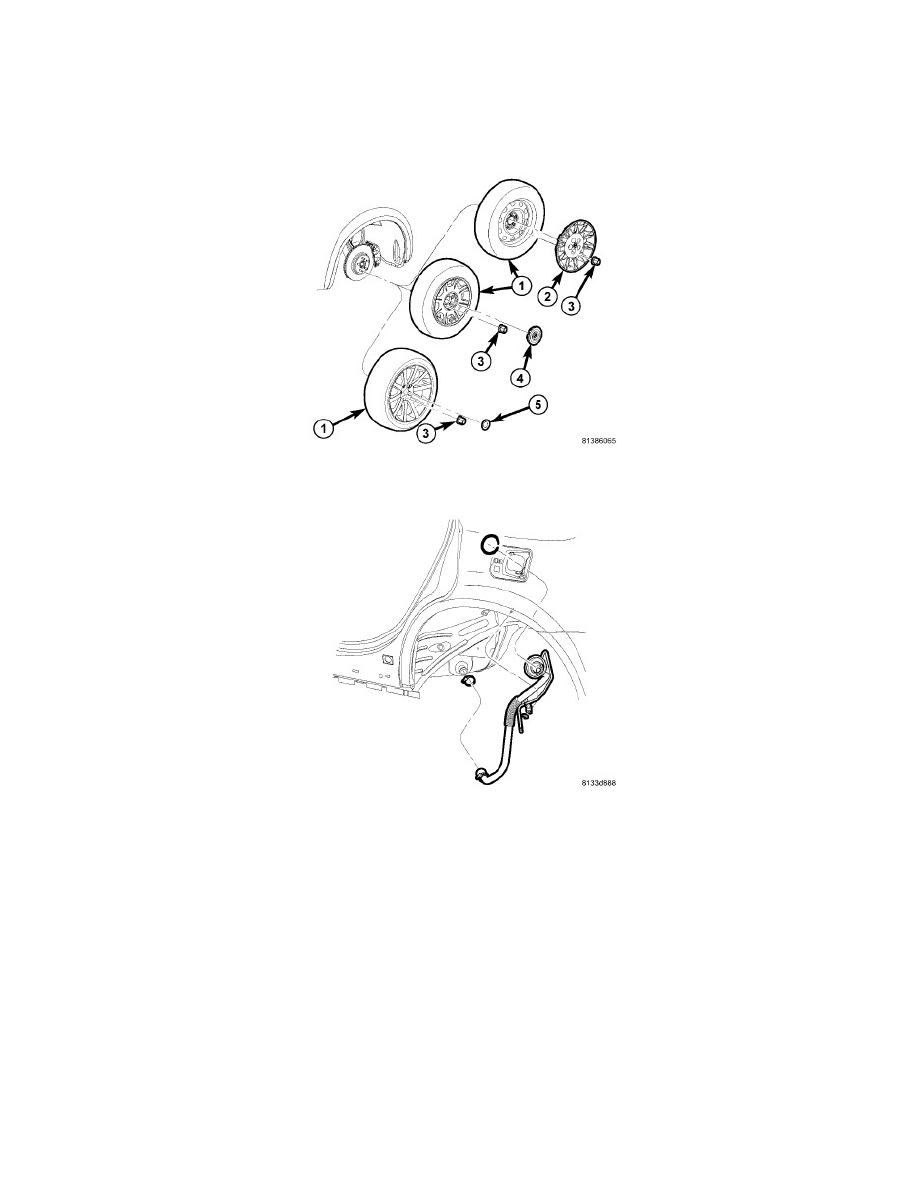

6. Install tire and wheel assembly (1). Tighten wheel mounting nuts (3) to 150 Nm (110 ft. lbs.) (Police - 190 Nm (140 ft. lbs.)). See: Wheels and
Tires/Service and Repair/Removal and Replacement/Tires and Wheels - Installation
7. Lower vehicle.
8. Position vehicle on alignment rack/drive-on lift. Raise vehicle as necessary to access mounting bolts.
