Challenger V6-3.5L (2009)

Page 1
background image

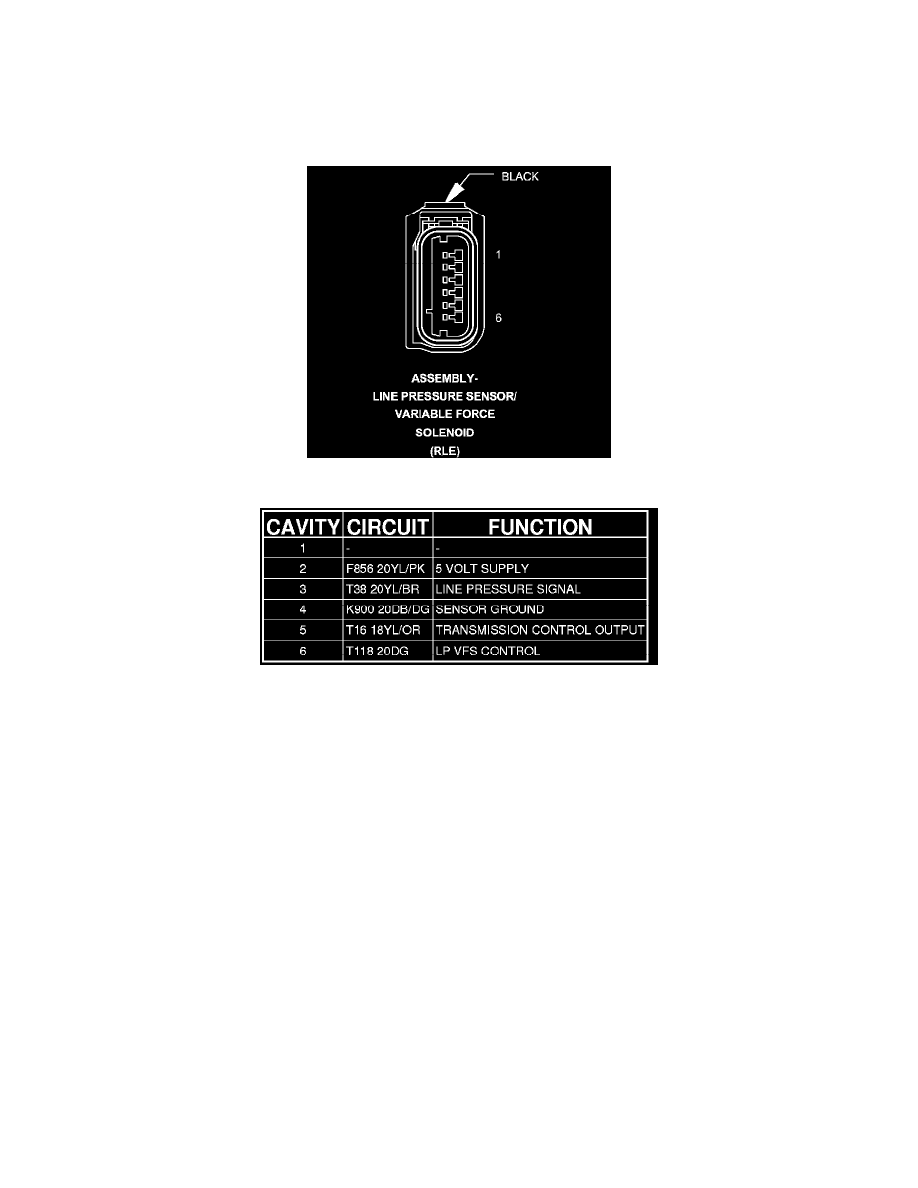

Fluid Pressure Sensor/Switch: Diagrams
Line Pressure Sensor/Variable Force Solenoid Assembly (RLE) 6 Way

Connector (RLE) - (ENGINE) 6 WAY



 ASSEMBLY-LINE PRESSURE SENSOR/VARIABLE FORCE SOLENOID (RLE) - (ENGINE) 6 WAY
