Challenger V6-3.5L (2009)
Shift Cable: Service and Repair
NAG1 Automatic Transmission
Shift Cable - Removal
REMOVAL
1. Shift transmission into PARK.
2. Raise vehicle.

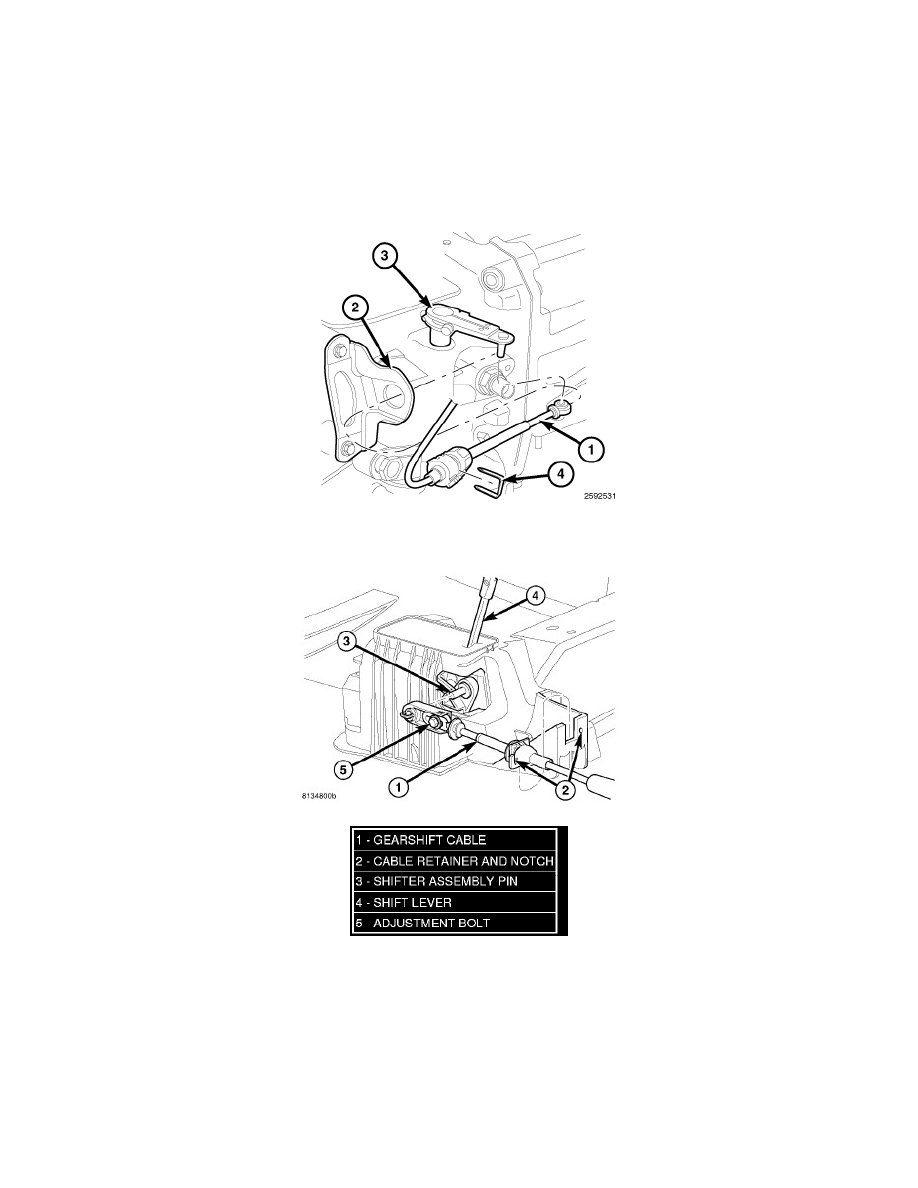

3. Remove the gearshift cable retaining clip (4) (if equipped).
4. Disconnect the gearshift cable (1) from the shift lever (3), and remove cable from bracket (2).
5. Lower the vehicle.
6. Remove the floor console See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair/Floor Console - Removal as necessary to
access the shift mechanism and cables.
7. If necessary, remove the bolts holding the shield, covering the gearshift and park lock cables, to the floorpan and remove the shield.
8. Remove the gearshift cable (1) from the shift lever pin (3).
9. Remove the gearshift cable retainer (2) from the notch (2) in the shifter assembly.
