Challenger V6-3.5L (2009)

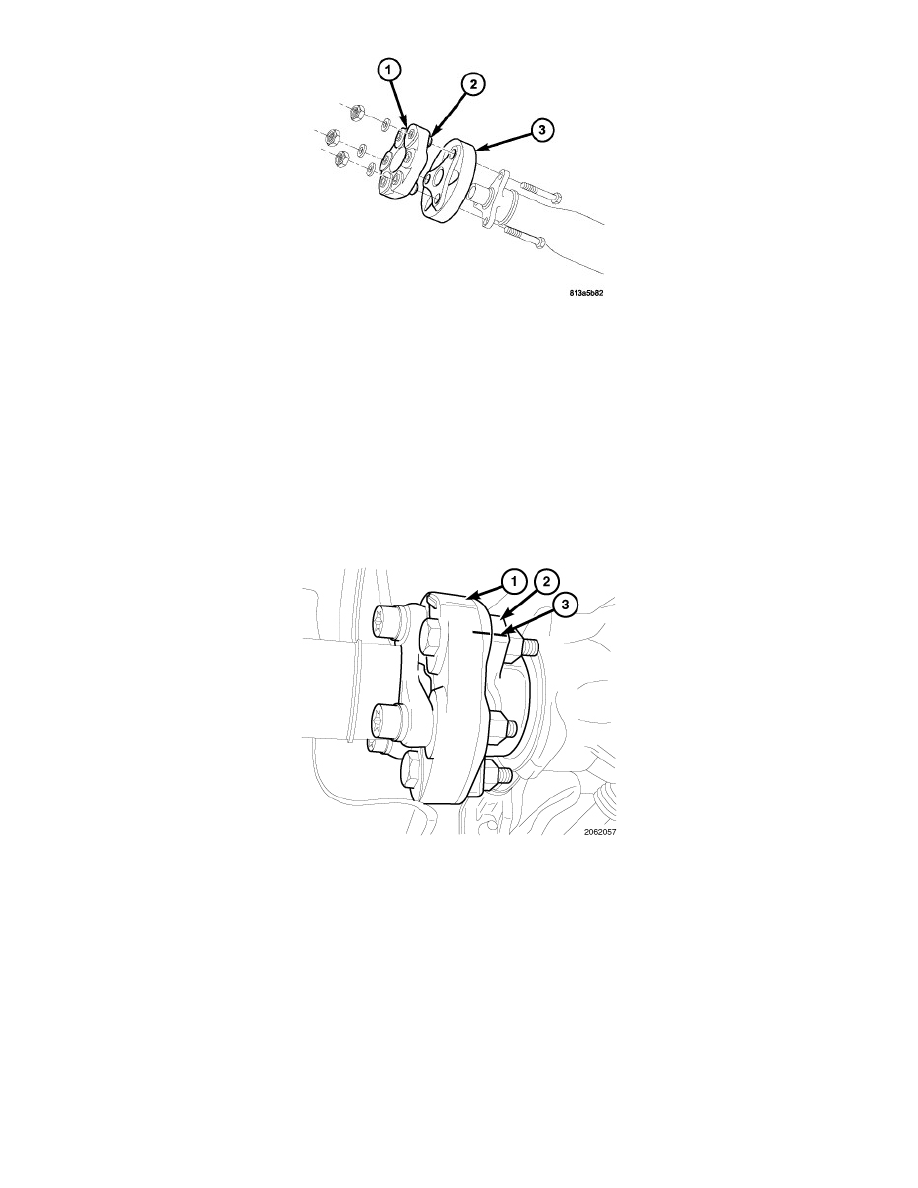

1. Remove three coupler-to-propeller shaft bolt/nuts.
2. Separate coupler (1) and damper (3) (if equipped) from propeller shaft. Note orientation and direction of components. It is imperative that they are
properly reinstalled.
Manual Transmission
MANUAL TRANSMISSION
CAUTION: Propeller shaft removal is a two-man operation. Never allow propeller shaft to hang from the center bearing, or while only
connected to the transmission or rear axle flanges. A helper is required. If a propeller shaft section is hung unsupported, damage
may occur to the shaft, coupler, and/or center bearing from over-angulation. This may result in driveline vibrations and/or
component failure.
1. With vehicle in neutral, position on hoist.
2. Apply alignment index marks (3) on the transmission and axle flanges (2) and rubber couplers (1).
