Challenger V6-3.5L (2009)
NOTE: Always install a new hub nut. The original hub nut is one-time use only and should be discarded when removed.

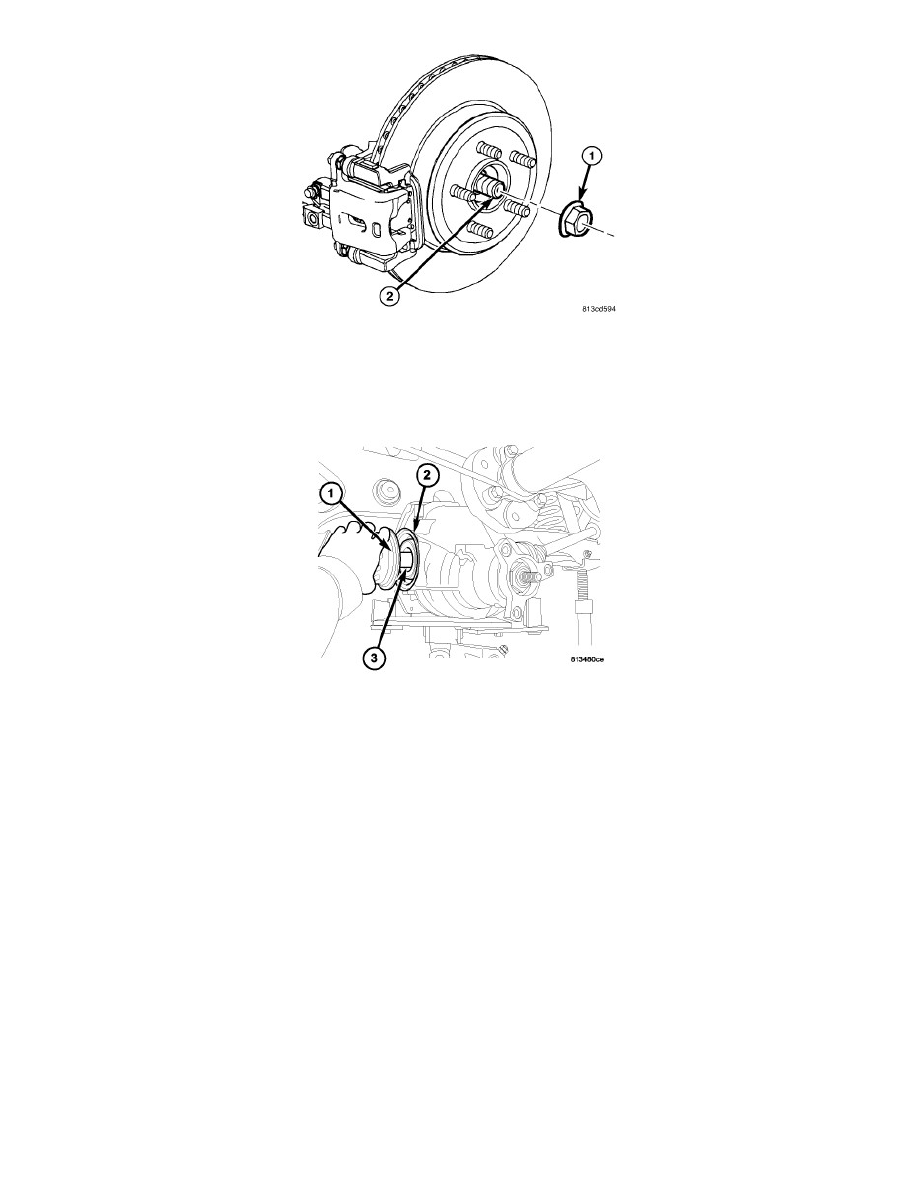

3. Install halfshaft (2) to wheel hub/knuckle assembly. Install new hub nut (1) by hand.
NOTE: Inspect slinger(s) for handling damage. Straighten as necessary to avoid contact with axle seal.
NOTE: Use care when installing halfshaft to axle assembly. The halfshaft installation angle should be minimized to avoid damage to seal upon
installation.
4. Lubricate halfshaft inner joint bearing journal (3) with Mopar(R) Gear and Axle Lubricant (75W-140). Using new circlip(s), install halfshaft (1) to
rear axle assembly. Use care not to damage axle seals (2). Verify proper installation by pulling outward on joint by hand.
