Daytona L4-153 2.5L SOHC VIN B (1993)
Relays and Modules

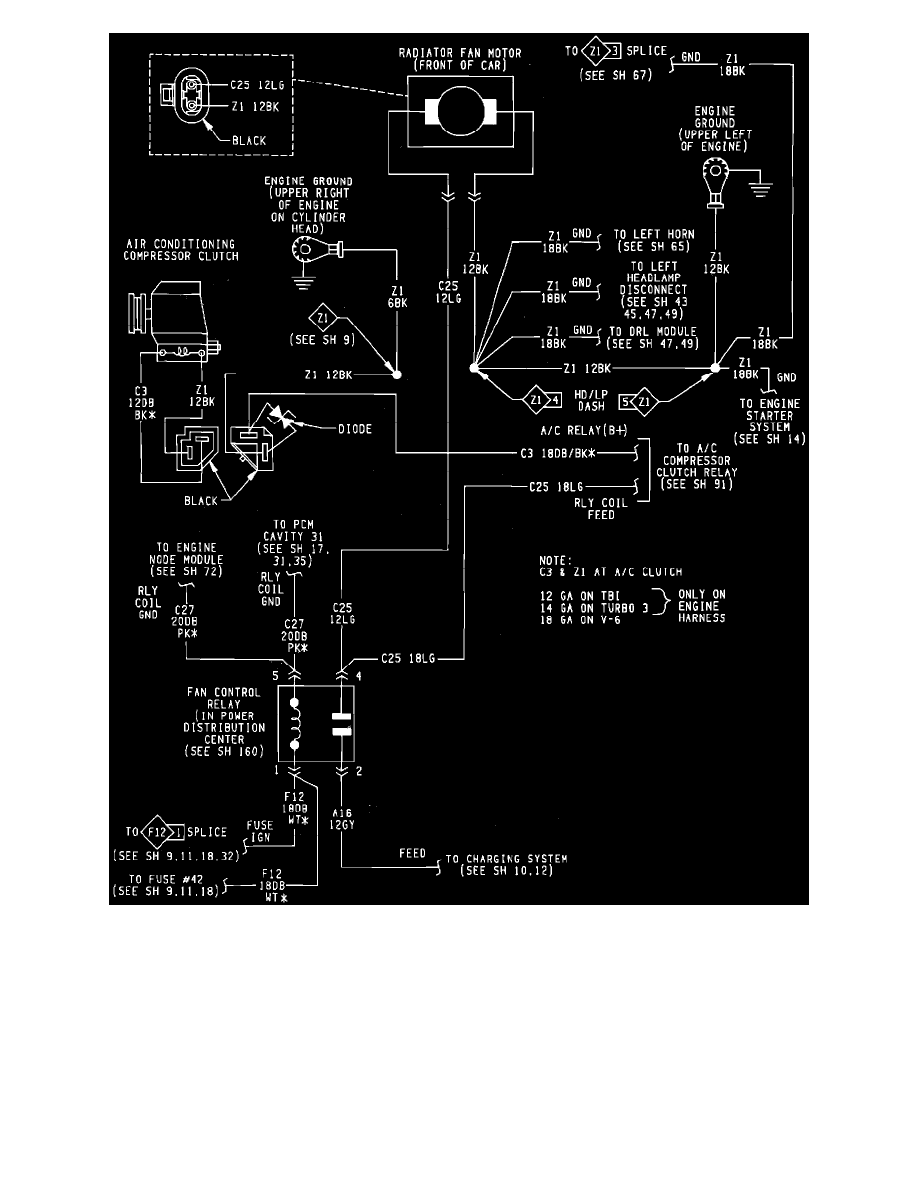

Relays and Modules - Cooling System / Radiator Fan Relay <--> [Radiator Cooling Fan Motor Relay] / Diagrams / Diagram Information and Instructions
Page 27
Page 2
With A/C
Relays and Modules
Relays and Modules - Cooling System / Radiator Fan Relay <--> [Radiator Cooling Fan Motor Relay] / Diagrams / Diagram Information and Instructions
Page 27
