Durango 2WD V8-4.7L Flex Fuel (2009)
5. Rotate the hinge feet (1) up and out of the U-frame (2) and remove wind deflector. Right side hinge shown, left similar.
Without front hinges:

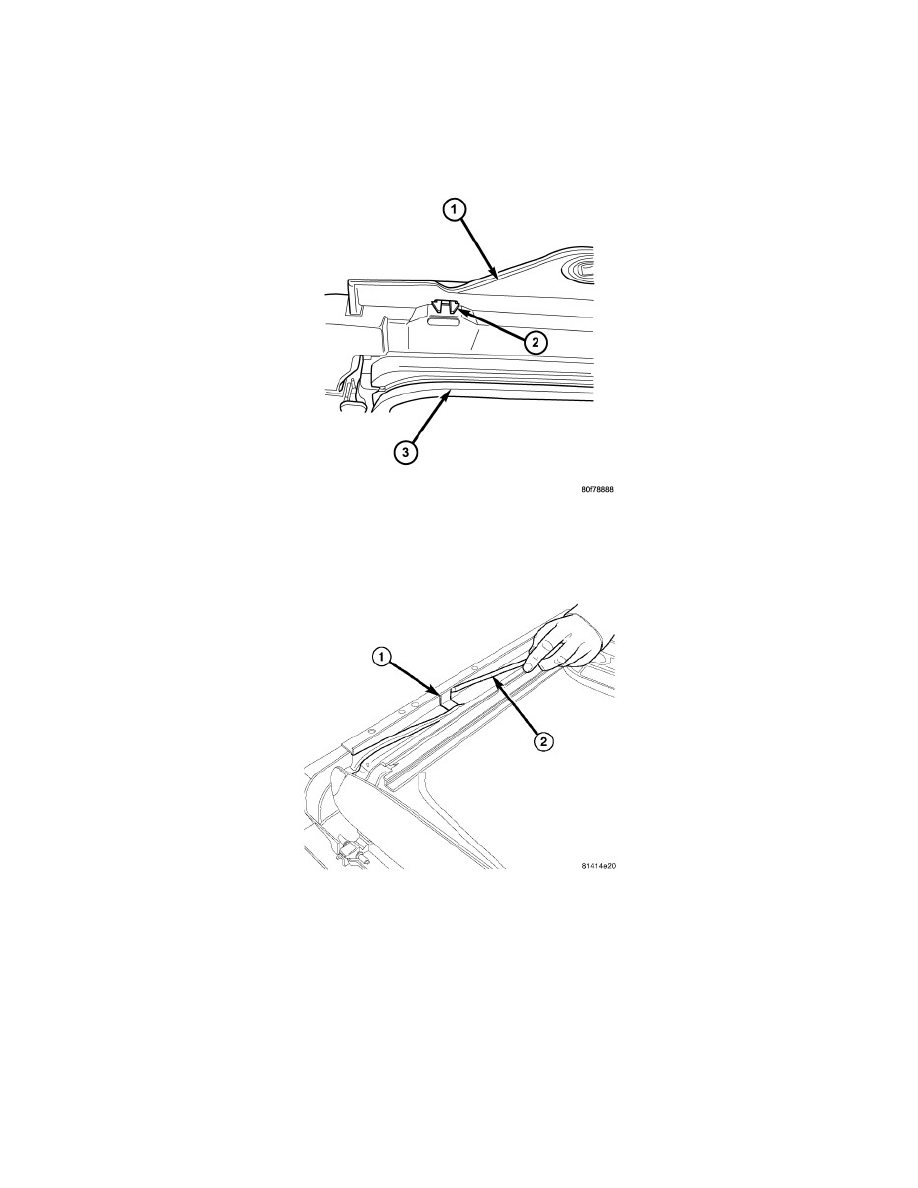

1. Using a small flat bladed tool (2) or equivalent, release the both hinges (1) from the U-frame track. Right side hinge shown, left similar.
2. Using a small flat bladed tool or equivalent, release the inner locking tab (2) portion of the hinges from the U-frame tracks (3) and separate the
hinges (1) from the track.
