Durango 2WD V8-4.7L Flex Fuel (2009)
5. Disconnect the wire harness connectors from the condenser cooling fan motor (9) and the A/C pressure transducer (10).
6. Remove the two wire harness retainers (2) from the condenser fan shroud (4) and position the wire harness out of the way.
7. Remove the nuts (1 and 8) that secure the A/C discharge line (5) and A/C liquid line (7) to the A/C condenser (6).
8. Disconnect the A/C discharge and liquid lines from the A/C condenser and remove and discard the O-ring seals and gaskets.
9. Remove the A/C discharge line from the retainer (3) located on the condenser fan shroud (4).
10. Install plugs in, or tape over the opened discharge and liquid line fitting and condenser ports.

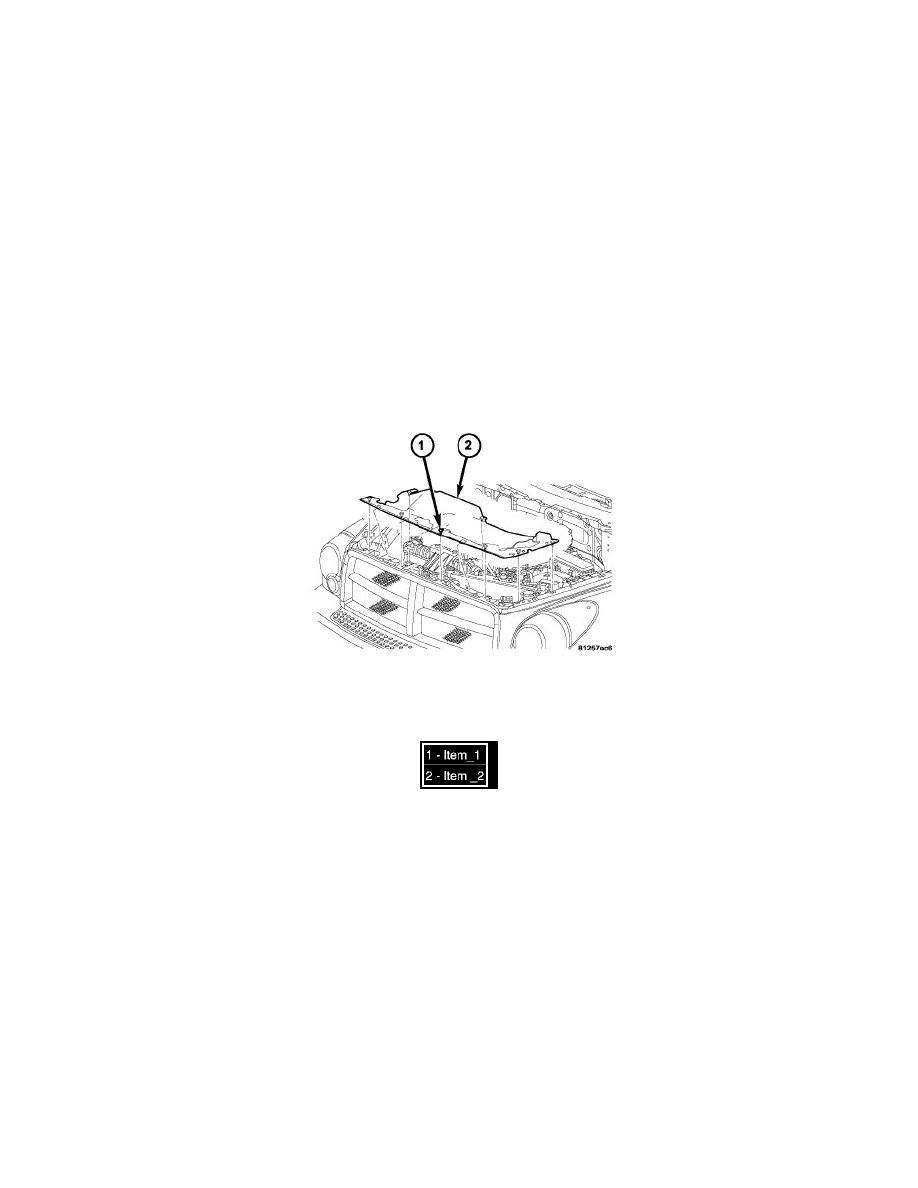

11. Remove the three bolts (1) that secure the upper radiator support (2) to the upper front crossmember (5).
12. Remove the upper radiator support and position the radiator overflow hose (3) out of the way.
13. Remove the bolt that secures the condenser/cooling fan assembly (4) to the upper left fender rail.
14. Carefully push back the radiator (6) for clearance and remove the condenser/cooling fan assembly from the engine compartment.
