Durango 2WD V8-4.7L Flex Fuel (2009)
1. Fold and tumble the outboard second row seat for easiest access to the latch bracket cover (1) on the inboard side of the seat.
2. Remove the two screws (3) that secure the cover to the seat latch bracket (2) and remove the cover.

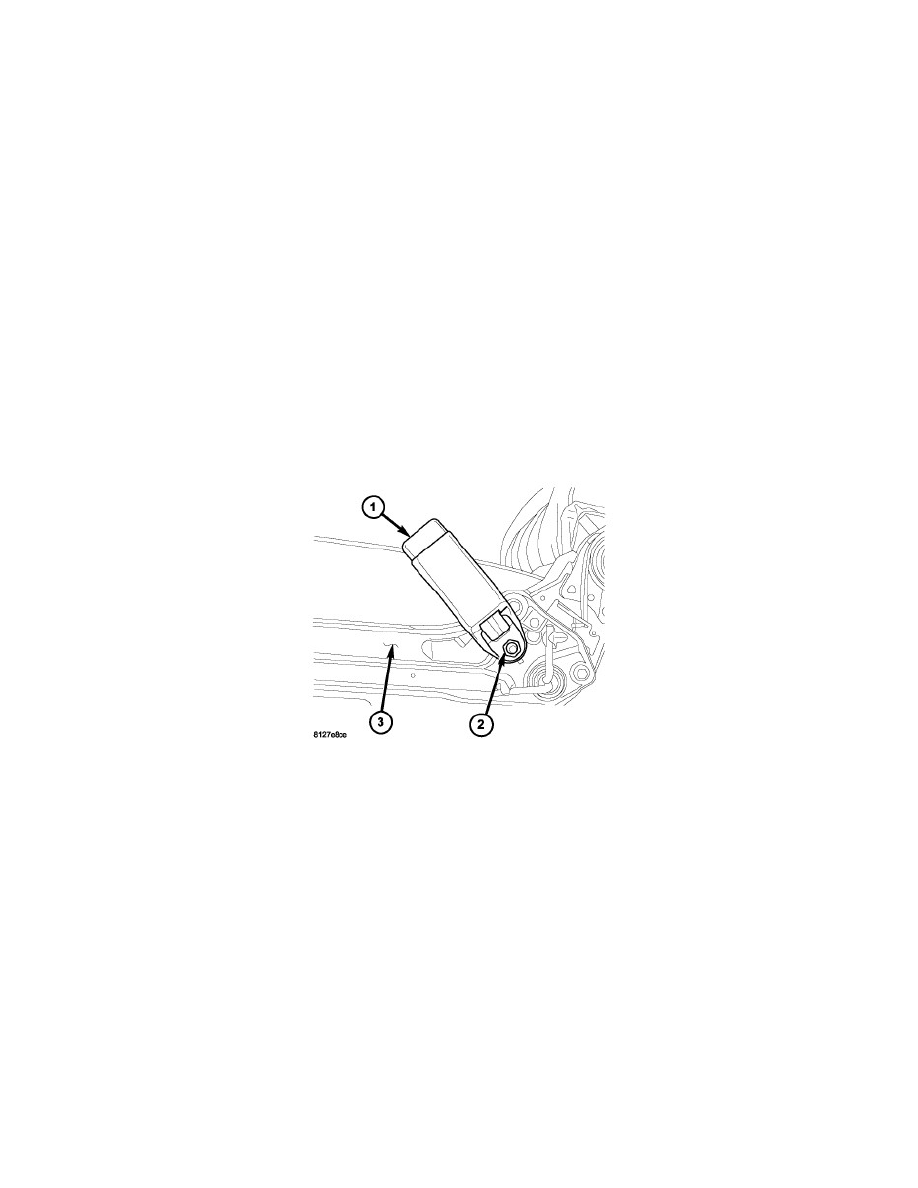

3. Remove the nut (2) that secures the second row outboard seat belt buckle anchor (1) to the latch bracket (3) and remove the buckle.
Third Row Bench Seat
THIRD ROW BENCH SEAT
WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts,
buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt
that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or
ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or
child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new
and unused replacement parts listed in the Chrysler Mopar (R) Parts Catalog. Failure to follow these instructions may result in
possible serious or fatal injury.
