Front Door Exterior Handle: Service and Repair
Removal

REMOVAL

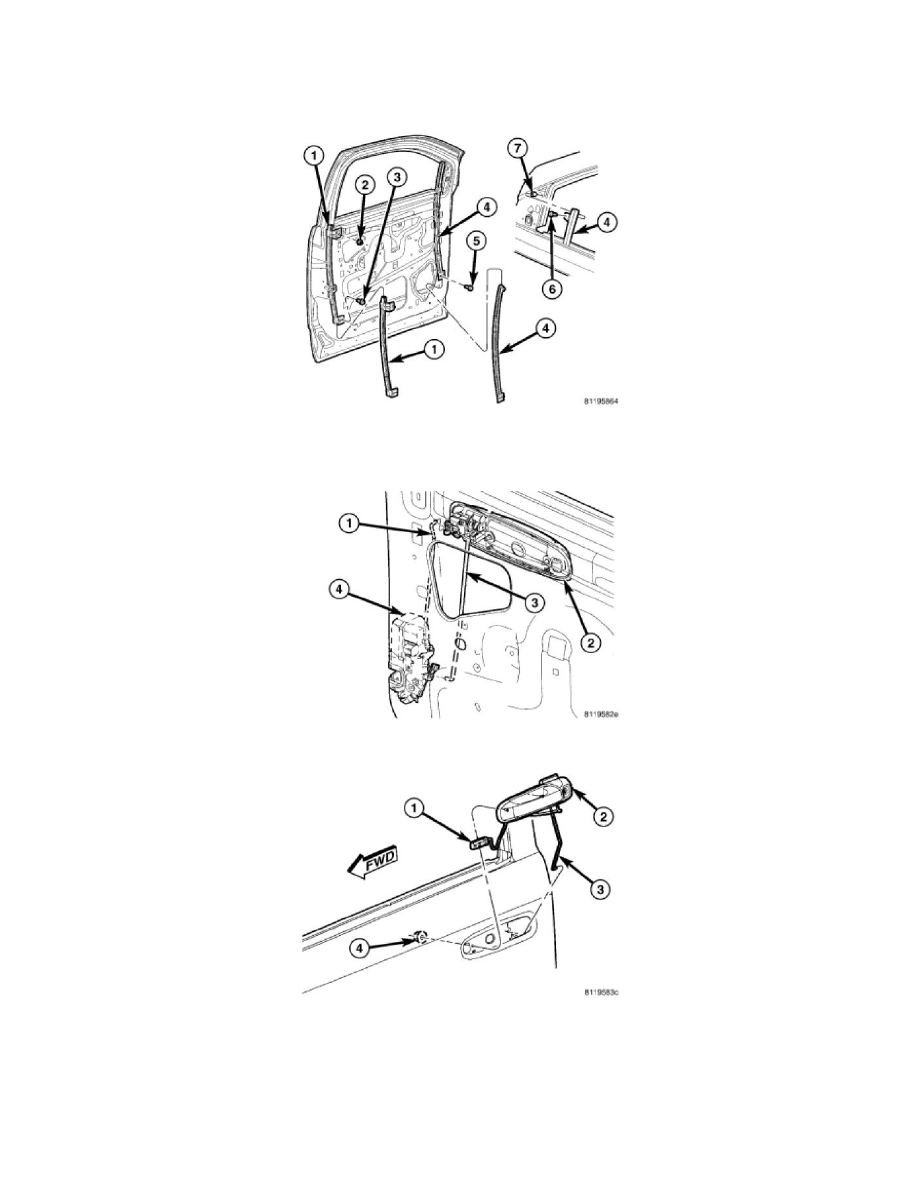

1. Remove the watershield. Refer to Front Door Trim Panel.

2. Remove the bolt (3) and nut (2) and position aside the rear glass run channel (1).

3. Disconnect the links (1 & 3) from the latch (4).

4. Remove the nut (4), the handle (2) and disconnect the electrical connector (1).
