Grand Caravan V6-3.8L (2009)
Sliding Door Interior Trim Panel: Customer Interest
Body - Power Sliding Door Will Not Power Open
NUMBER: 23-005-10
GROUP: Body
DATE: March 02, 2010
SUBJECT:
Power Sliding Door Will Not Power Open
OVERVIEW:

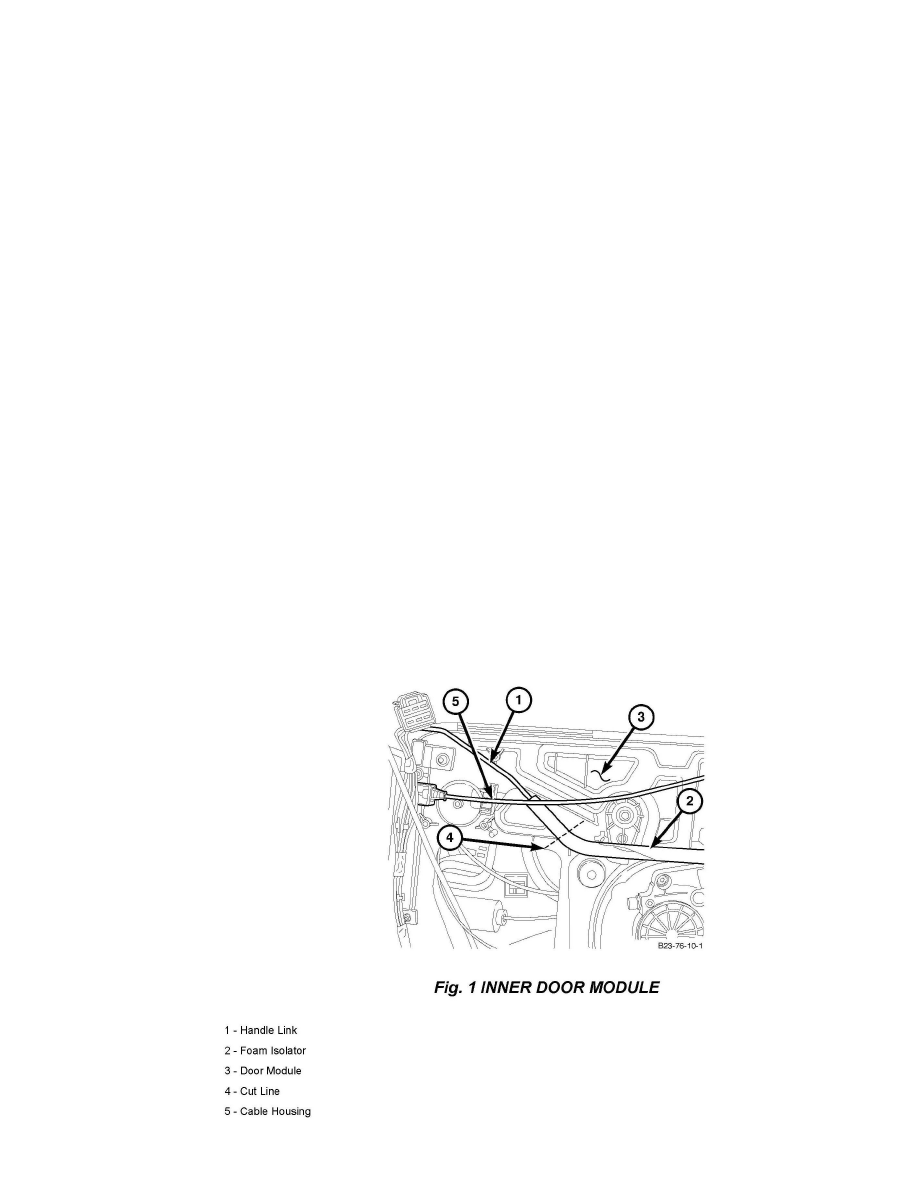

This involves removing the sliding door trim panel and modifying the foam isolator around the handle link on the right and/or left side.
MODELS:
2009-2010
(RT)
Caravan/Town and Country
NOTE:
This bulletin applies to vehicles built before February 12, 2010 (MDH0212XX).
SYMPTOM/CONDITION:
The customer may experience the power sliding door of the right and/or left side not opening when using the interior or exterior handles or interior
B-pillar button from full closed position but works with remote keyless entry and the front row overhead console buttons.
NOTE:
The sliding door will power close and properly function in all manual operations.
DIAGNOSIS:
This procedure only address vehicles that do not power open using the interior and exterior handles or interior B-pillar button from full closed position.
This does not address any closing issues.
REPAIR PROCEDURE:
1. Remove the door trim panel right and/or left side. Refer to the detailed procedures available in DealerCONNECT > TechCONNECT > : Service Info
> 23-Body > Doors - Sliding > PANEL, Door Trim > Removal.
