Grand Caravan V6-3.8L VIN L (2007)
Front Fender Liner: Service and Repair
Removal
REMOVAL
1. Hoist and support vehicle on safety stands. Refer to Vehicle Lifting.
2. Remove front wheel.
3. Remove push pin fasteners attaching splash shield to frame rail forward of suspension.
4. Remove push pin fasteners attaching splash shield to frame rail rearward of suspension.
5. Remove screws attaching wheelhouse splash shield to front fender and front bumper fascia.
6. Remove splash shield from vehicle (Figure 1).

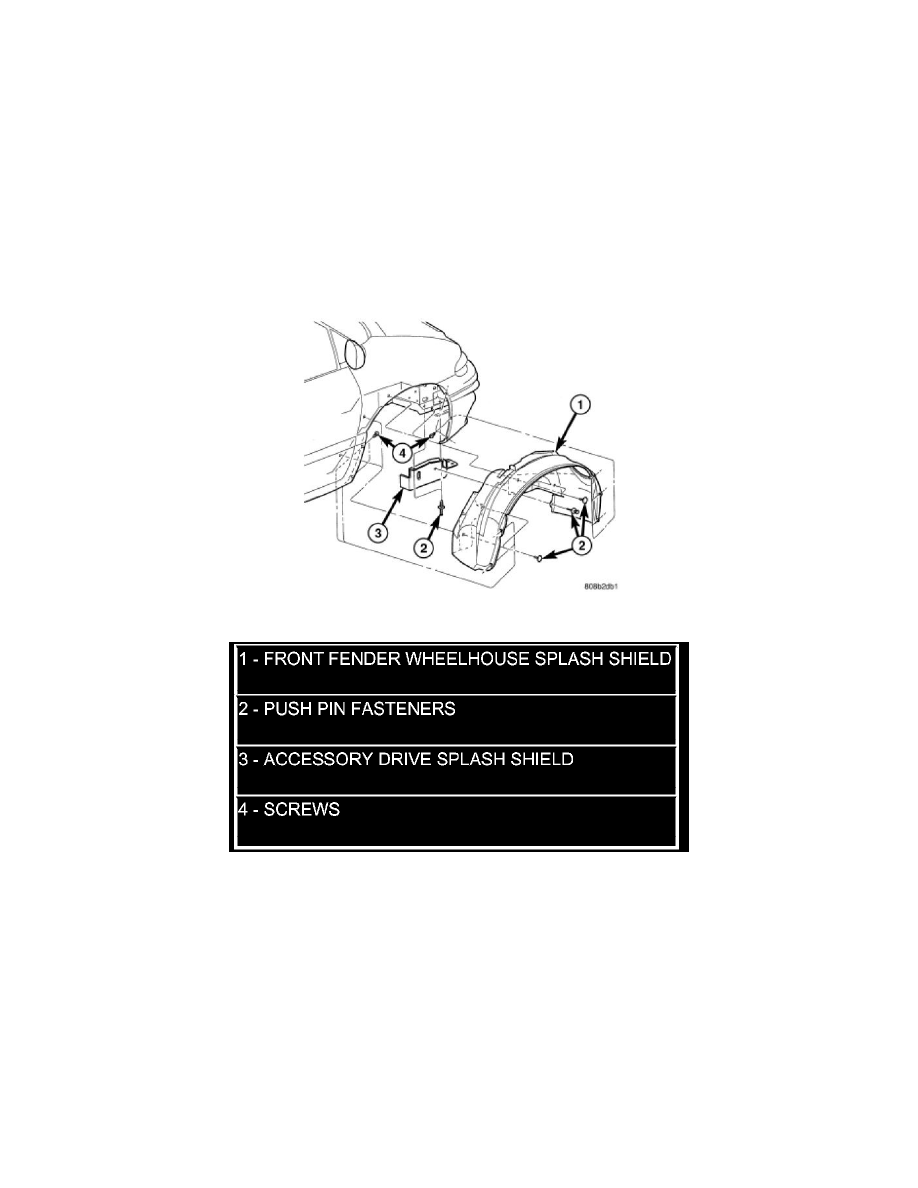

Figure 1 FRONT WHEELHOUSE SPLASH SHIELD
