Grand Caravan AWD V6-3.8L VIN L (2001)
Carpet: Service and Repair
Rear Floor Tub Carpets Insert - Fold - In - Floor
REAR FLOOR TUB CARPETS INSERT - FOLD - IN - FLOOR
REMOVAL
1. Open liftgate.
2. Remove liftgate sill plate. Refer to Trim Panel.
3. Fold third row seats in to floor well.

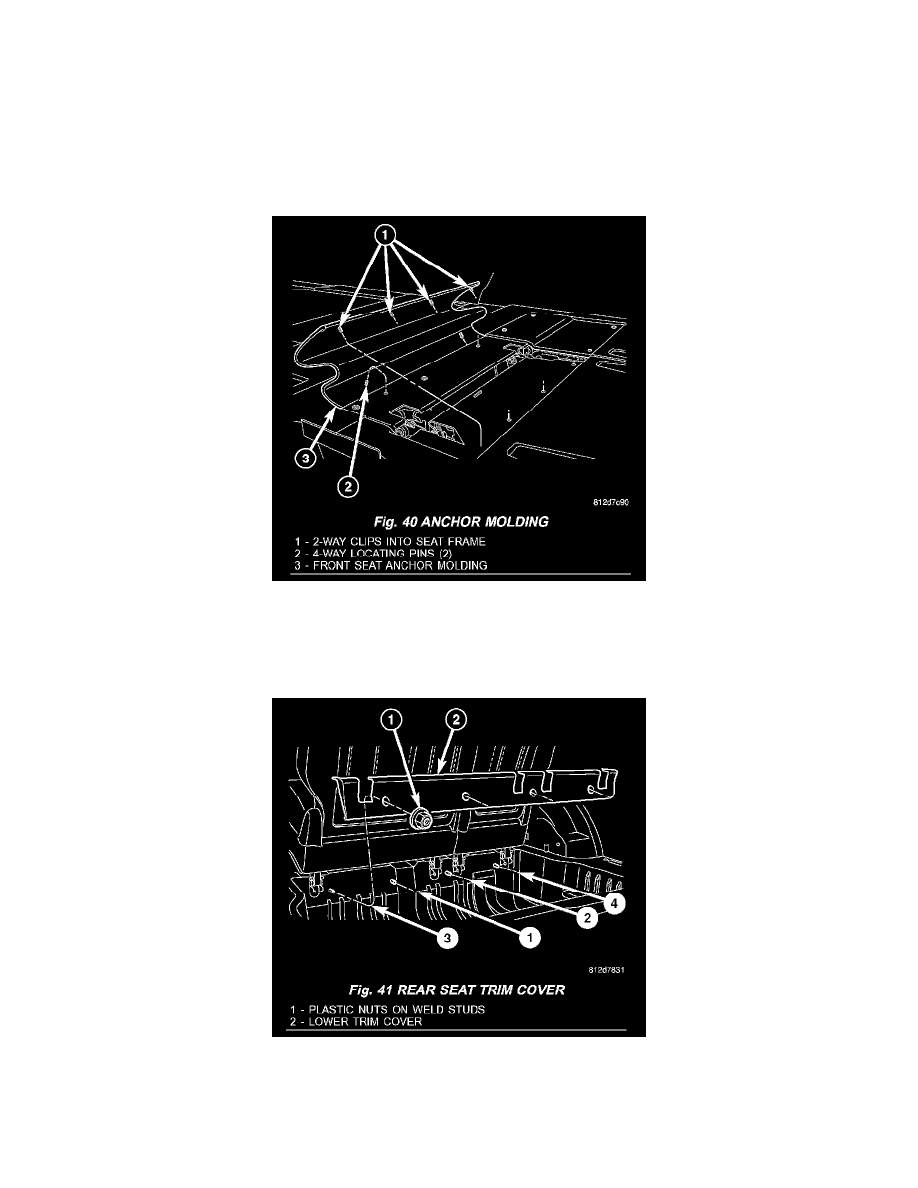

Fig. 40
4. Using a trim stick, unclip anchor molding (Fig. 40).
5. Remove two screws attaching front edge of floor tub carpet.
6. Fold seat back into the upright position.
Fig. 41
7. Remove nuts attaching third row seat lower trim cover (Fig. 41)
