Grand Caravan AWD V6-3.8L VIN L (2001)
valve.

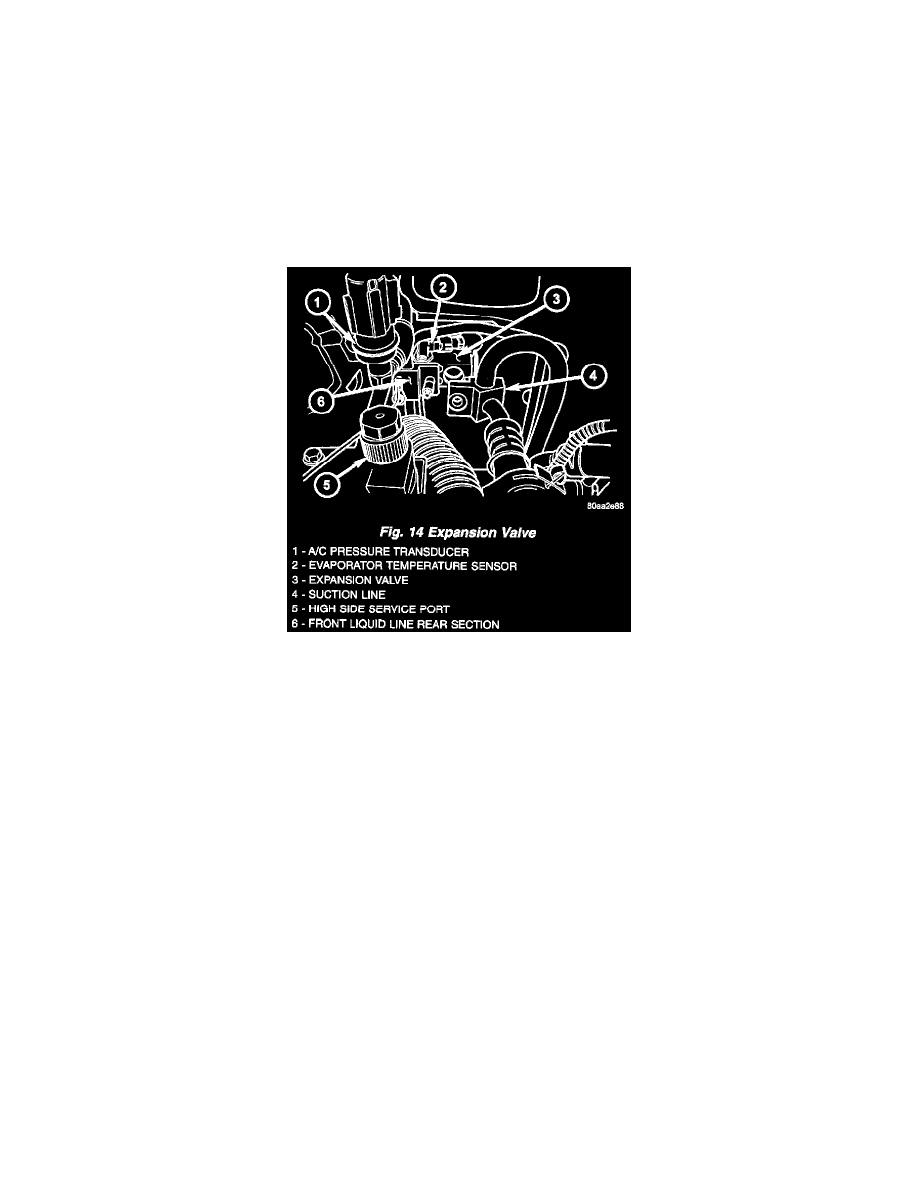

7. Remove the tape or plugs from the front liquid line rear section and suction line fittings for the expansion valve and both ports on the front of the
expansion valve.
8. Lubricate new rubber O-ring seals with clean refrigerant oil and install them on the front liquid line rear section and suction line fittings for the
expansion valve.
9. Reconnect the liquid line and suction line fittings to the expansion valve.
10. Install and tighten the nut that secures the suction line and liquid line fittings to the stud on the expansion valve. Tighten the nut to 23 Nm (17 ft.
lbs.).
11. Remove the tape or plugs from the liquid line rear section fitting for the filter-drier and the filter- drier outlet port.
12. Lubricate a new rubber O-ring seal with clean refrigerant oil and install it on the liquid line fitting.
13. Reconnect the liquid line fitting to the filter-drier outlet port on the top of the filter-drier.
14. Install and tighten the screw that secures the liquid line fitting to the filter-drier. Tighten the screw to 2 Nm (18 in. lbs.).
15. Reconnect the headlamp and dash wire harness connector for the A/C pressure transducer to the transducer on the front liquid line rear section.
16. Reconnect the drain tube to the wiper module drain on the right side of the engine compartment.
17. Reinstall the air cleaner housing into the right side of the engine compartment.
18. Reconnect the battery negative cable.
19. Evacuate the refrigerant system. Refer to: "Service and Repair" See: Service and Repair.
20. Charge the refrigerant system. Refer to: "Service and Repair" See: Service and Repair.
