Grand Caravan AWD V6-3.8L VIN L (2001)
Fuel Filler Hose: Service and Repair
REMOVAL
1. Disconnect the negative battery cable.
2. Remove the 3 screws at the filler door.
3. Raise and support vehicle
4. Remove the left rear tire.

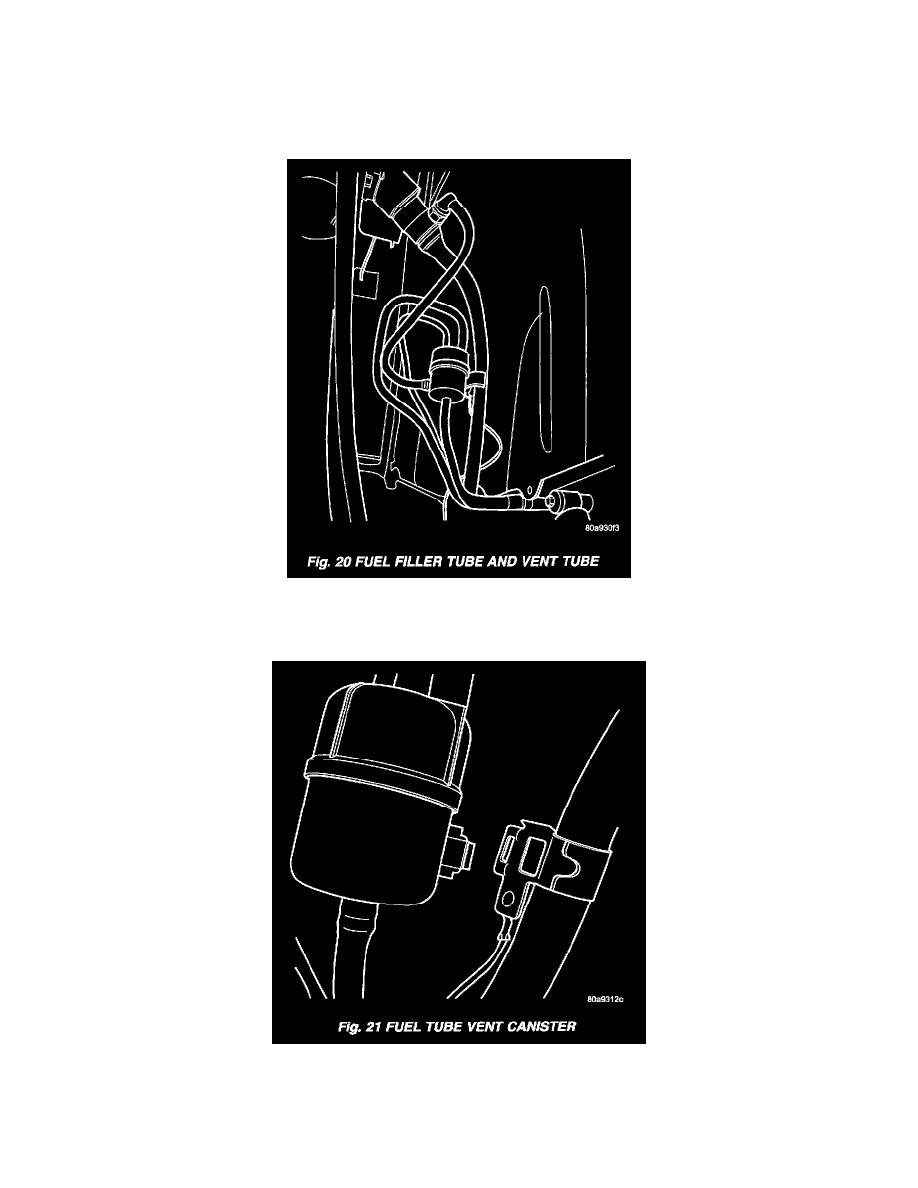

Fig. 20 Fuel Filler Tube And Vent Tube
5. Remove the splash shield (Fig. 20).
Fig. 21 Fuel Tube Vent Canister
6. Remove the canister from filler tube (Fig. 21).
7. Disconnect the vent at the top of the filler tube.
8. Remove the ground strap.
