Grand Caravan AWD V6-3.8L VIN L (2001)

Page 1
background image

Transmission Control Module: Locations

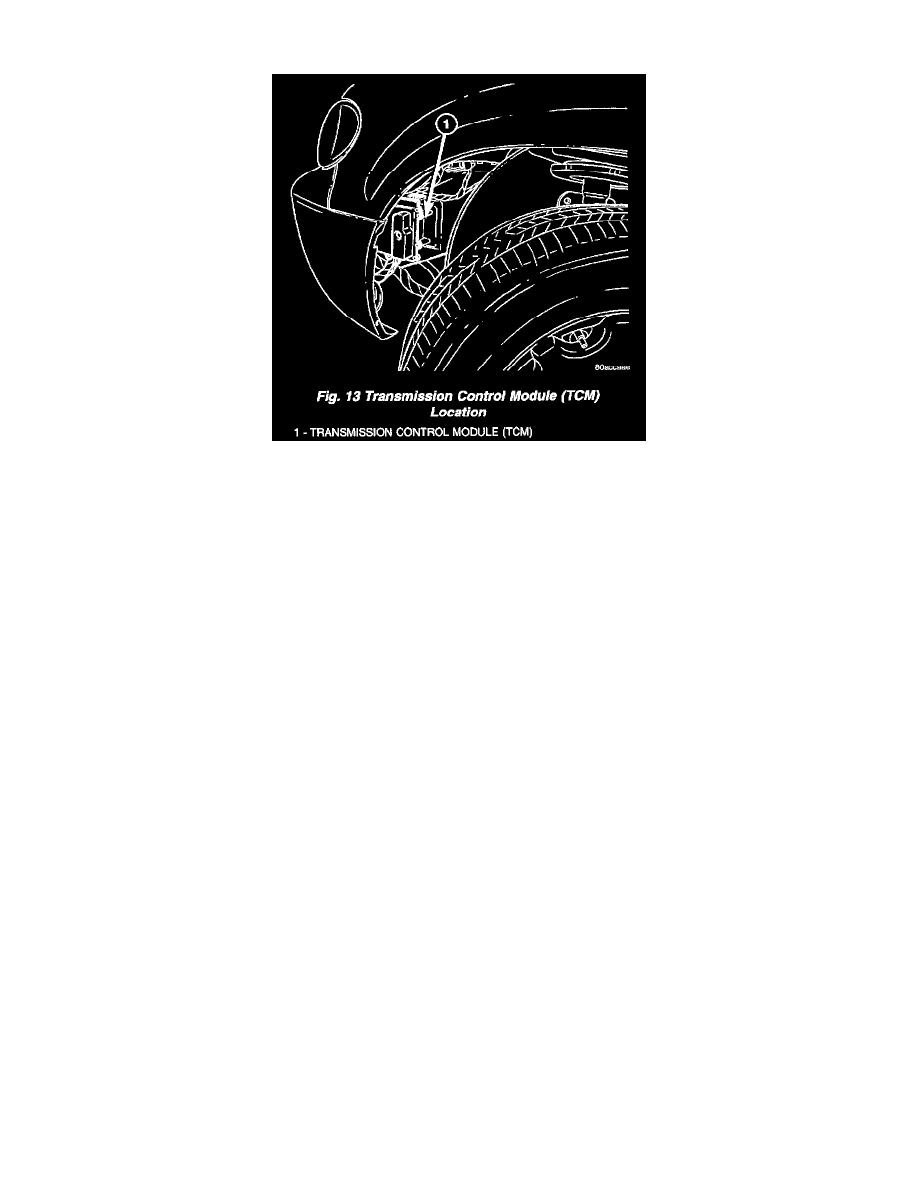

Fig.13 Transmission Control Module (TCM) Location

The Transmission Control Module (TCM) is located behind the left fender and is fastened with three screws to three clips in the left frame rail forward
of the suspension.
