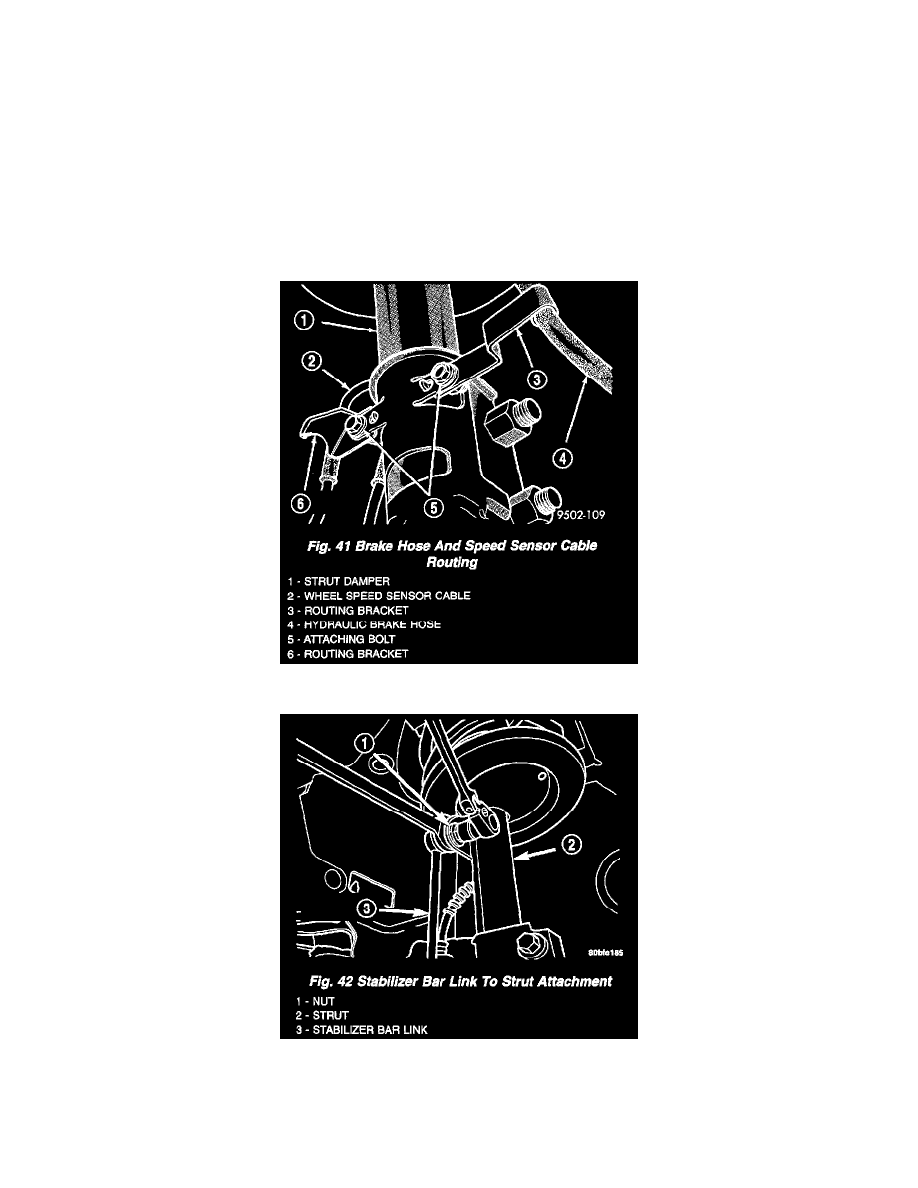

Grand Caravan AWD V6-3.8L VIN L (2001)
12. Remove the spring isolator from the lower spring seat on the strut.
13. Inspect the strut assembly components for the following and replace as necessary:
-
Inspect the strut for any condition of shaft binding over the full stroke of the shaft.
-
Check the upper mount for cracks and distortion and its retaining studs for any sign of damage.
-
Check the upper seat for stress cracks and wear.
-
Check the upper spring isolator for severe deterioration.
-
Check for binding of the strut assembly pivot bearing.
-
Inspect the dust shield for rips and deterioration.
-
Inspect the jounce bumper for cracks and signs of deterioration.
ASSEMBLY-STRUT ASSEMBLY (FRONT)
For the disassembly and assembly of the strut assembly, use of Strut Spring Compressor, Pentastar Service Equipment (PSE) tool W-7200, or the
equivalent, is recommended to compress the coil spring. Follow the manufacturer's instructions closely.
NOTE: Coil Springs on this vehicle are side-oriented. Springs on the left side of the vehicle have a left-hand wind top-to-bottom while springs on the
right side have a right-hand wind top-to-bottom. Left and right springs must not be interchanged.
NOTE: If the coil spring has been removed from the spring compressor, proceed with the next step, otherwise, proceed with step 5.
