Grand Caravan FWD V6-181 3.0L SOHC (1993)
Fig 6 Removing And Installing Braking Disc
9. Remove the braking disc (rotor) from the hub by pulling it straight off the wheel mounting studs.

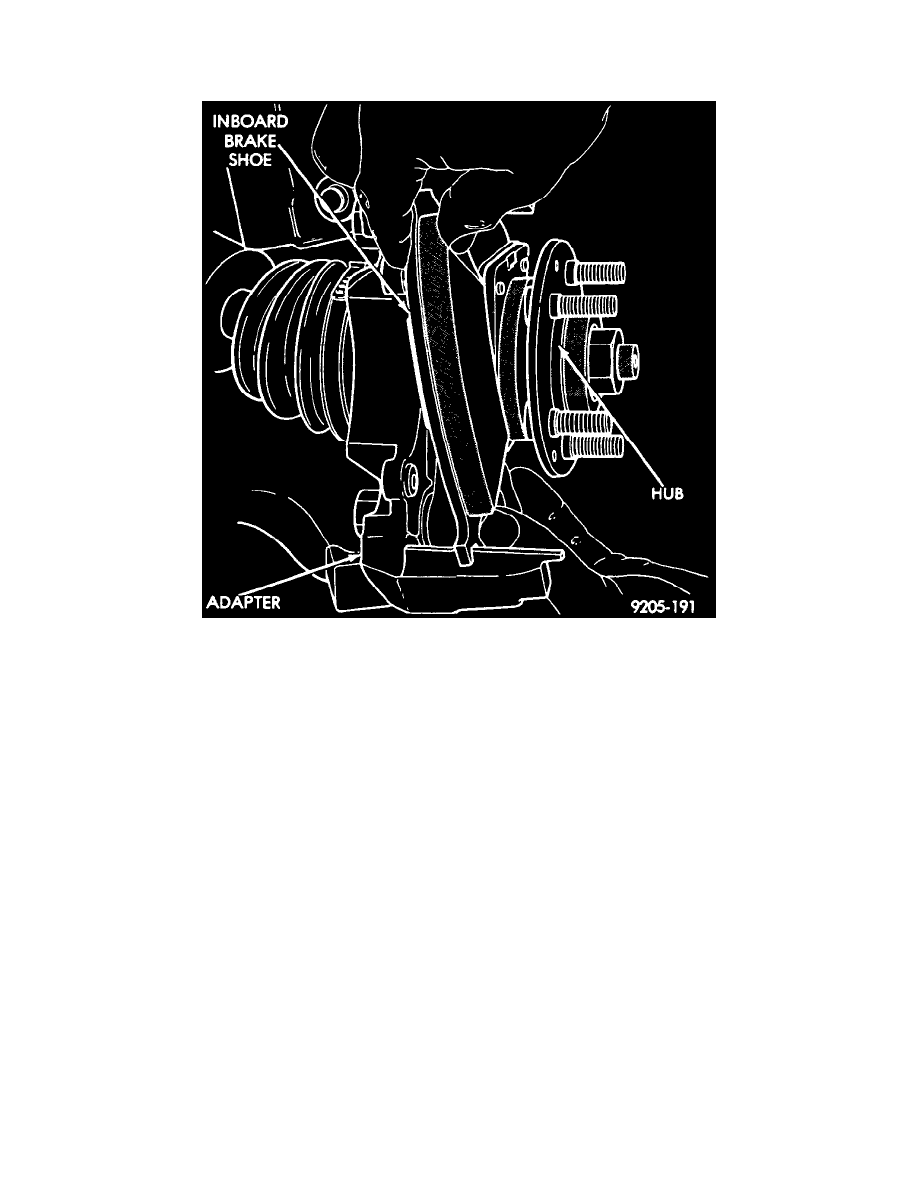

Fig 7 Removing And Installing Inboard Shoe Assembly
10. Remove the inboard shoe assembly by sliding it out along the bottom adapter abutment until brake shoe assembly loosens from anti-rattle clip.
