Grand Caravan FWD V6-181 3.0L SOHC (1993)
Engine, Cooling and Exhaust
Cooling System
Radiator Cooling Fan
Radiator Cooling Fan Motor / Component Information
Diagrams / Diagram Information and Instructions
Page 2417
Page 2

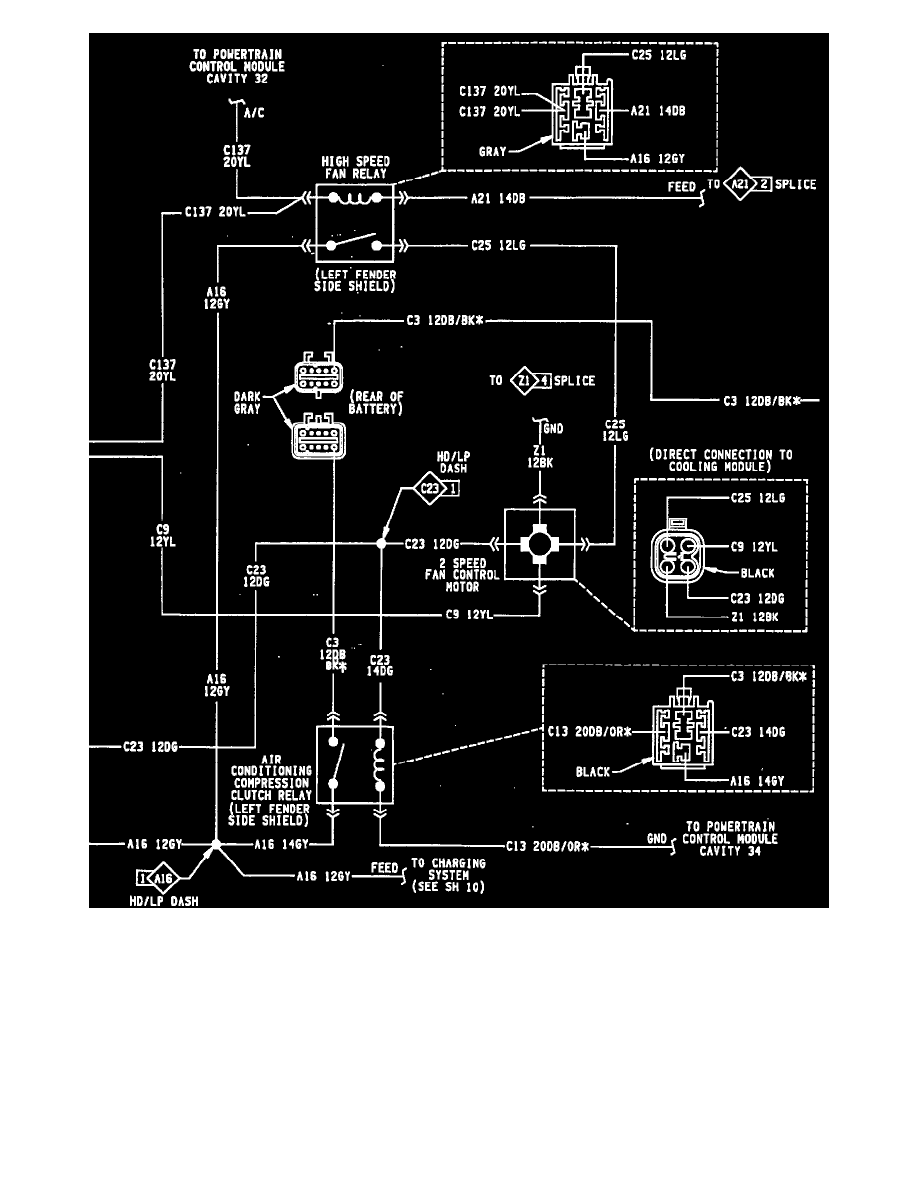

Electric cooling fan & air conditioning circuit With Transmission Control (Part 2 of 4)
Engine, Cooling and Exhaust
Cooling System
Radiator Cooling Fan
Radiator Cooling Fan Motor / Component Information
Diagrams / Diagram Information and Instructions
Page 2417
