Grand Caravan FWD V6-181 3.0L SOHC (1993)
Hose/Line HVAC: Customer Interest
A/C Service Equipment - Difficulty Connecting
NO.: 24-02-93
GROUP: Air Conditioning
DATE: Feb. 8, 1993
SUBJECT:
A/C Suction/Liquid Line Service Fitting
MODELS:
1993 (AS) Caravan/Grand Caravan/Caravan CV
Voyager/Grand Voyager/Town & Country
SYMPTOM/CONDITION:
On some A/C suction/liquid lines, it may be difficult or impossible to connect the service equipment quick-connect couplings to the service fitting.
NOTE:
WHEN ATTEMPTING TO CONNECT THE SERVICE EQUIPMENT COUPLING TO THE LINE FITTING, BE SURE THE VALVE OF THE
COUPLING IS FULLY CLOSED. THIS WILL DRAMATICALLY REDUCE THE AMOUNT OF EFFORT REQUIRED TO MAKE THE
CONNECTION.
DIAGNOSIS:
1.

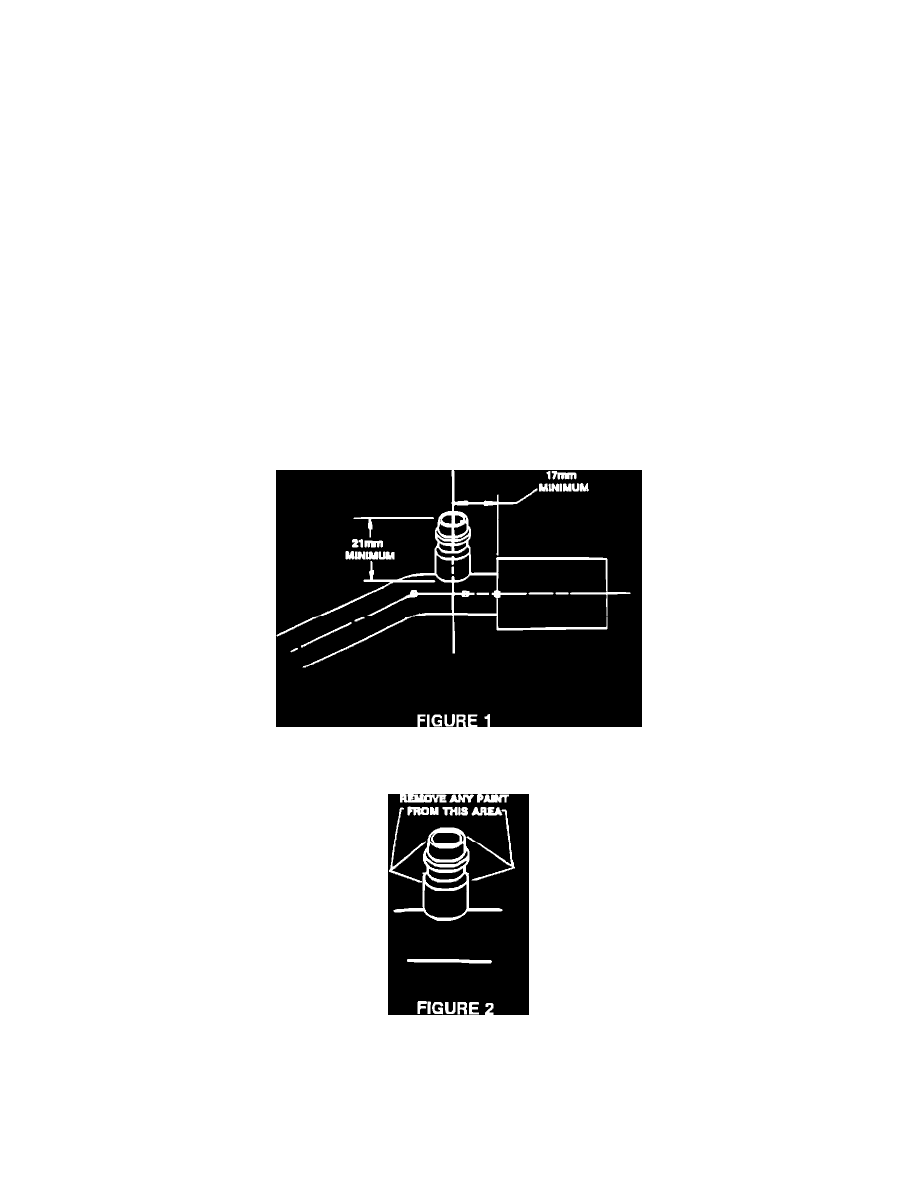

Referring to Figure 1, measure from the base of the fitting to its top. The minimum dimension is 21 mm (.827 in.) and side clearance to the swage
end of tube is 17.5 mm (.689 in.).
2.
Referring to Figure 2, inspect the fitting for paint in the area indicated.
PARTS REQUIRED:
AR
A/C Line, Suction/Liquid - 2.5L
4677130
AR
A/C Line, Suction/Liquid - 3.0L
4677132
AR
A/C Line, Suction/Liquid - 3.3L
4677134
