Grand Caravan FWD V6-181 3.0L SOHC (1993)
Transmission Position Switch/Sensor: Locations
4 Speed A/T

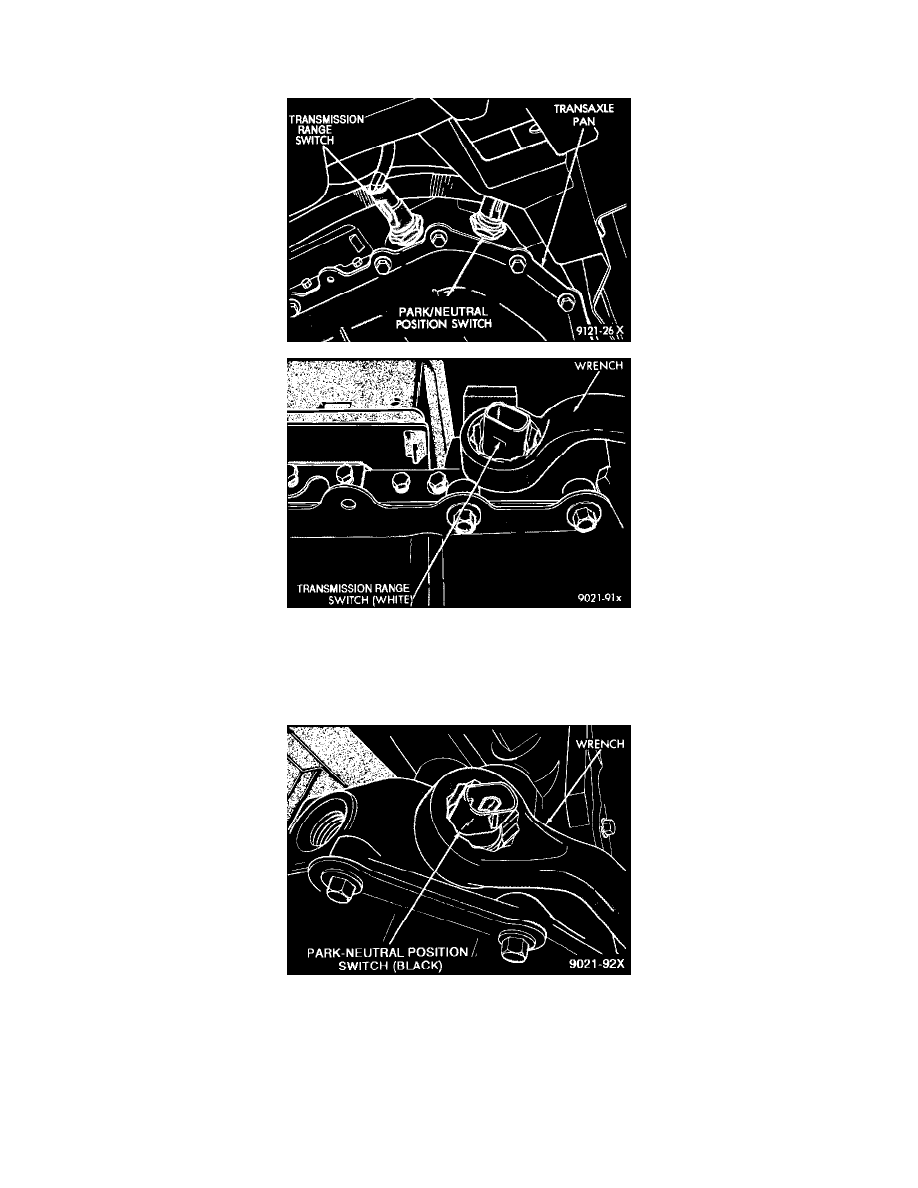

Transmission Range Switch
This applies to the 4 speed electronic automatic transaxle.
The torque for the white Transmission Range Switch (formerly called PRNDL) is 34 Nm (25 ft. lbs.).
Park/Neutral Position Switch
The torque for the black Park/Neutral Position Switch (formerly called Neutral Safety Switch) is 34 Nm (25 ft. lbs.).
Caution: Switch Seal washer must be seated properly before tightening switch. Failure to do so may result in leakage of transmission fluid.
