Magnum V6-3.5L VIN V (2006)
Constant Velocity Joint Boot: Service and Repair
Front Inner
BOOT-CV INNER
REMOVAL

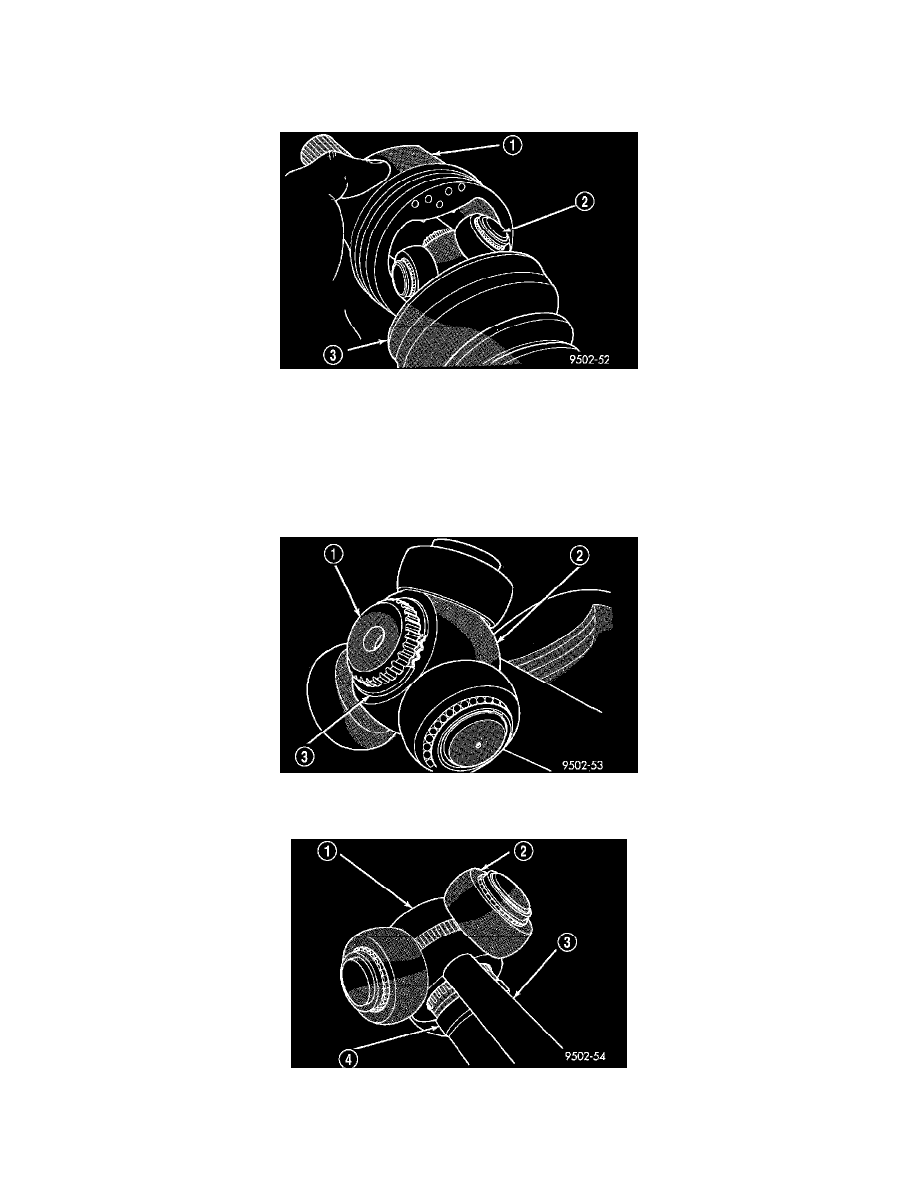

1. Remove large boot clamp which retains inner tripod joint sealing boot to tripod joint housing and discard. Remove small clamp which retains inner
tripod joint sealing boot to interconnecting shaft and discard. Remove the sealing boot (3) from the tripod housing and slide it down the
interconnecting shaft.
CAUTION: When removing the tripod joint housing from the spider assembly, hold the bearings in place on the spider trunions; to prevent the
bearings from failing away.
2. Slide the tripod joint housing (1) off the spider assembly and the interconnecting shaft.
3. Remove snap ring (3) which retains spider assembly to interconnecting shaft (1). Do not hit the outer tripod bearings in an attempt to remove
spider assembly from interconnecting shaft.
4. Remove the spider assembly (1) from interconnecting shaft (4). If spider assembly will not come off interconnecting shaft by hand, it can be
removed by tapping spider assembly with a brass drift (3).
5. Slide sealing boot off interconnecting shaft.
