Magnum V8-5.7L (2008)
Vacuum Brake Booster: Service and Repair
Removal
BOOSTER
1. Move driver's seat to full rearward position.

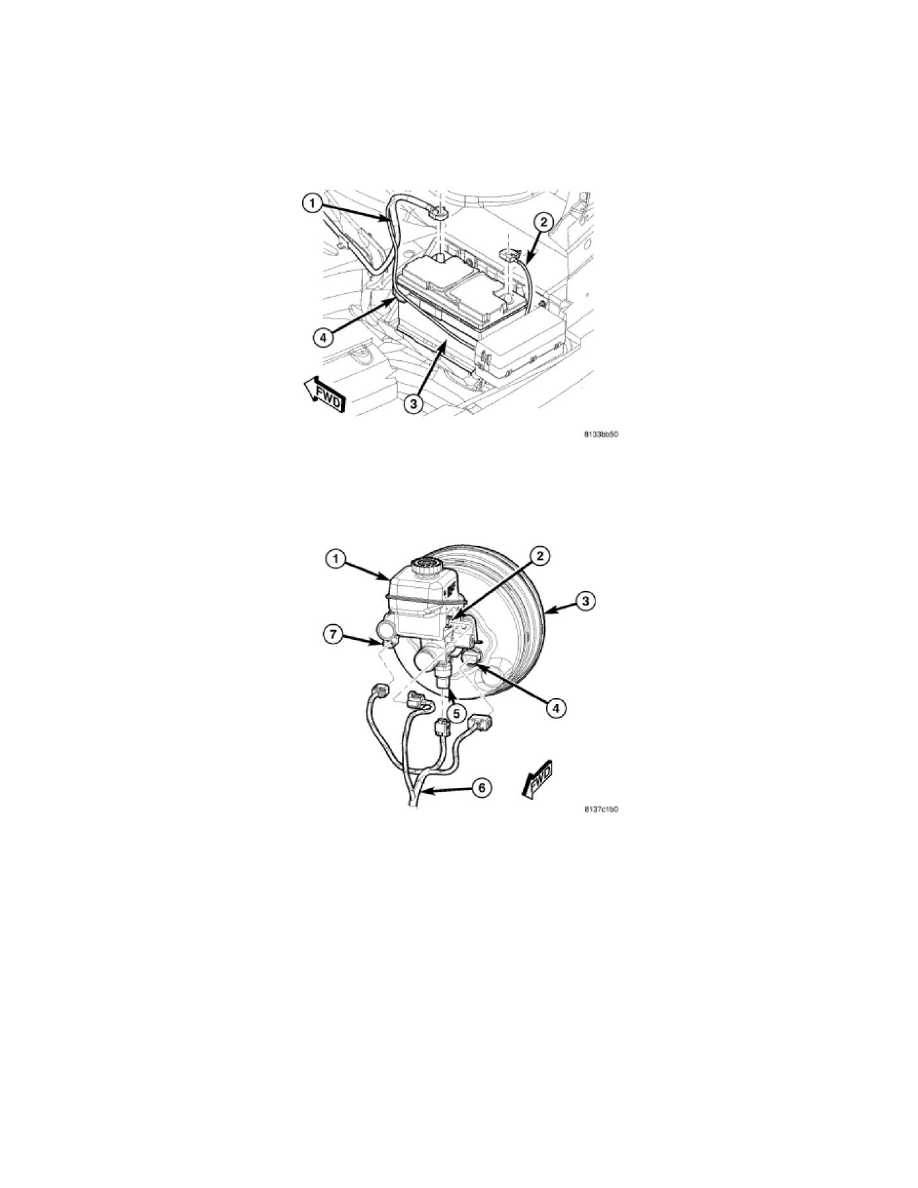

2. Disconnect and isolate battery negative cable (2) from battery post.
3. Remove windshield wiper module. See: Wiper and Washer Systems/Wiper Motor/Service and Repair/Wiper Module - Removal
4. Remove master cylinder. See: Hydraulic System/Brake Master Cylinder/Service and Repair/Removal and Replacement/Master Cylinder -
Removal
5. If equipped with MK25 and Electronic Stability Program (ESP), disconnect wiring harness (6) connector at pedal travel sensor (7) on power brake
booster (3).
6. If equipped with MK25 and ESP, disconnect wiring harness (6) connector at active brake booster solenoid (4).
