Magnum V8-5.7L (2008)
Cruise Control Module: Diagrams
Component ID:
240

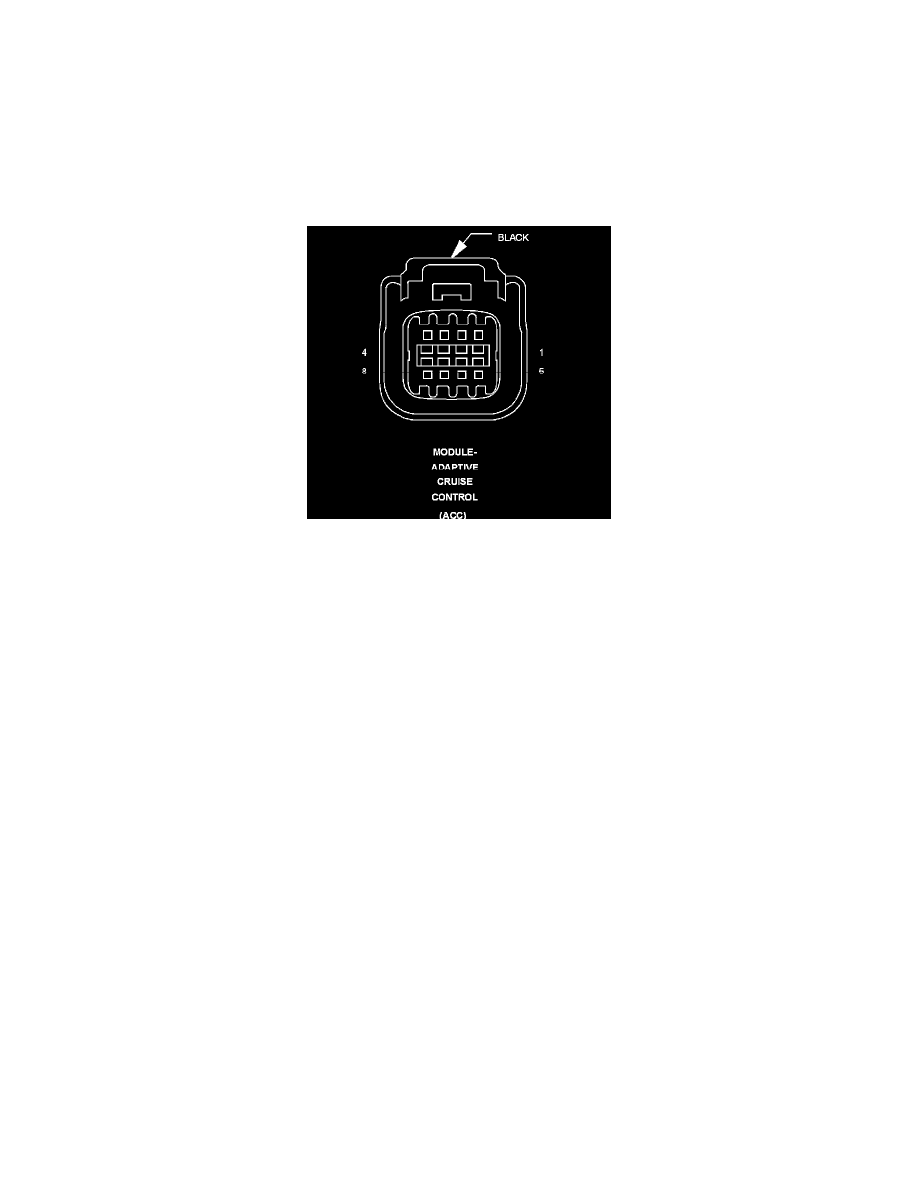

Component :
MODULE- ADAPTIVE CRUISE CONTROL
Connector:
Name :
MODULE- ADAPTIVE CRUISE CONTROL
Color :
BLACK
# of pins :
8
Qualifier :
(ACC)
Pin
Circuit
Description
1
Z901 20BK
GROUND
2
-
-
3
D64 20WT/LB
CAN C BUS (-)
4
-
-
5
F202 20PK/GY
FUSED IGNITION RUN-START OUTPUT
6
-
-
7
D65 20WT/BK
CAN C BUS (+)
8
-
-
Component Location - 89
