Magnum V8-5.7L (2008)
Control Assembly: Locations
Component ID:
84
Component :
CONTROL-A/C-HEATER
Connector:
Name :

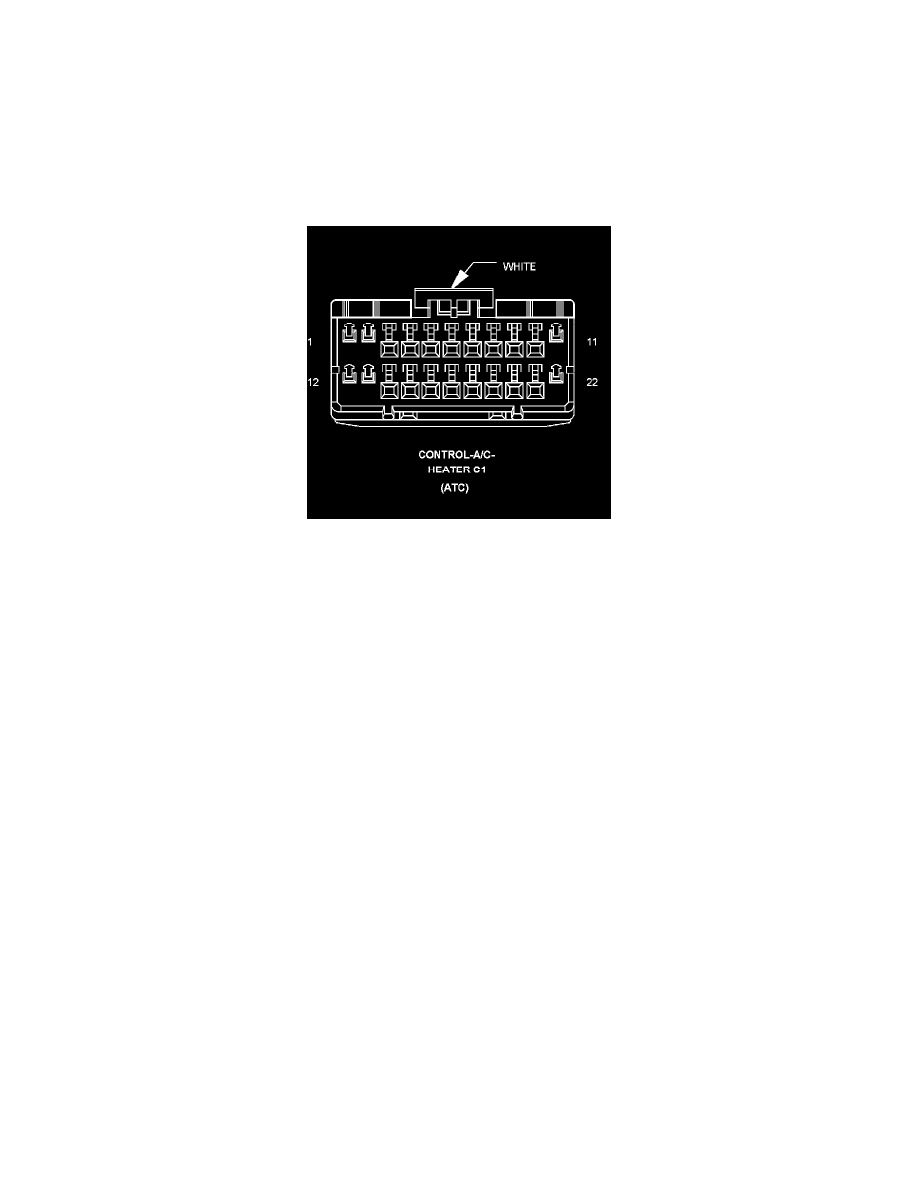

CONTROL-A/C-HEATER C1
Color :
WHITE
# of pins :
22
Qualifier :
(ATC)
Pin
Circuit
Description
1
F500 20DG/PK
FUSED RUN RELAY OUTPUT
2
A23 20RD/YL
FUSED B(+) (I.O.D.)
3
Z909 20BK/LG
GROUND
4
D54 20WT
CAN B BUS (-)
5
D55 20WT/OR
CAN B BUS (+)
6
C115 20DB
REAR WINDOW DEFOGGER RELAY CONTROL
7
E12 20OR/GY
PANEL LAMPS DRIVER
8
G39 20VT/LB
SUN SENSOR SIGNAL 1
9
G139 20VT/OR
SUN SENSOR SIGNAL 2
10
L24 20WT/VT
AUTO HEADLAMPS SIGNAL
11
G939 20VT/DB
SUN SENSOR RETURN
12
-
-
13
-
-
14
-
-
15
-
-
16
-
-
17
-
-
18
-
-
19
-
-
20
-
-
21
-
-
22
-
-
Component Location - 45
